Jiaxing Join Fasteners Co.,Ltd. supply a wide range of DIN434 Square Taper Washer. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

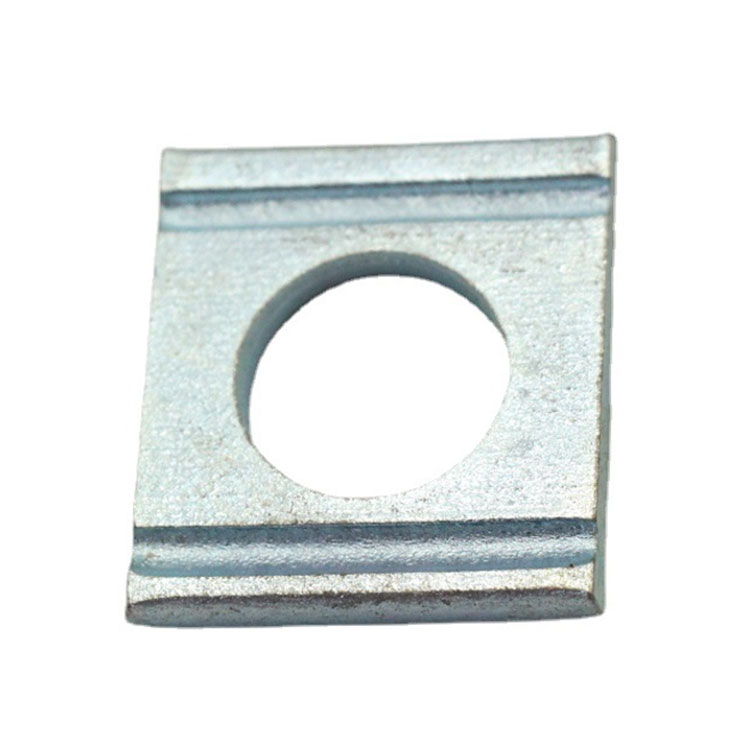

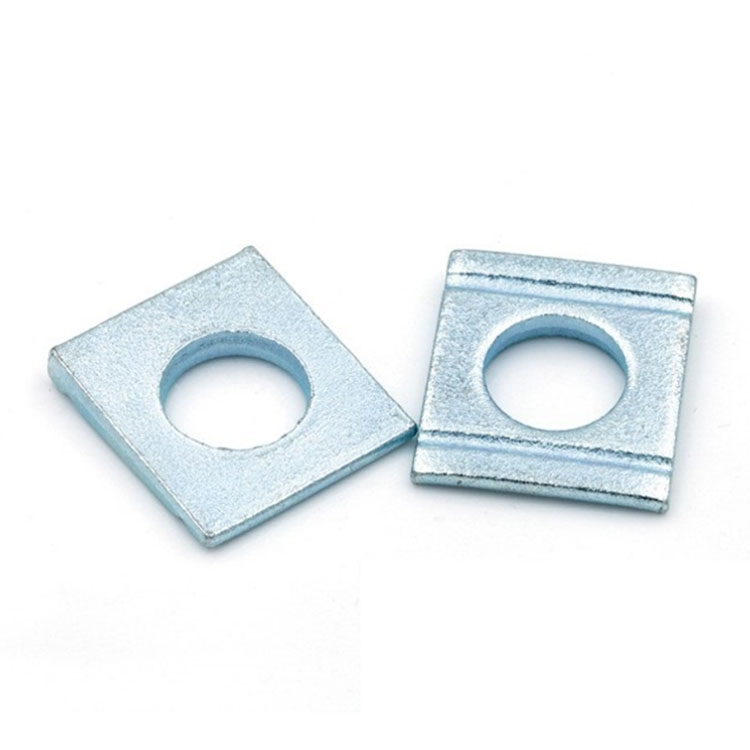

Square Taper washers are specially designed for shimming and leveling in structural applications. Use with channel sections. Plain Malleable washers are for general applications. Plain Finish, or bare metal finish which may contain a light coating of oil.
| Dimensions: | DIN434 |
| Material and Mechanical: | Steel grade being at the manufacturer's discretion |
| Hardness: 100-250 HV 10 | |
| Finish: | Zinc clear per DIN267-10 or Hot-dip galvanized as per DIN EN ISO4042 |
| Head Marking: | No |
| Type: | Square Taper Washer |
Figure 1: Washer dimensions (notation)
Table 1:Washer dimensions and mass
| Nominal size1) |
For thread size |
d Min.= nominal size |
Max. |
Nominal size |
a Min. |
Max. |
Nominal size |
b Min. |
Max. |
| 9 | M8 | 9 | 9,36 | 22 | 20 | 24 | 22 | 21,35 | 22,65 |
| 11 | M10 | 11 | 11,43 | 22 | 20 | 24 | 22 | 21,35 | 22,65 |
| 13,5 | M12 | 13,5 | 13,93 | 26 | 24 | 28 | 30 | 29,35 | 30,65 |
| 17,5 | M16 | 17,5 | 17,93 | 32 | 29,5 | 34,5 | 36 | 35,2 | 36,8 |
| 22 | M20 | 22 | 22,52 | 40 | 37,5 | 42,5 | 44 | 43,2 | 44,8 |
| 24 | M22 | 24 | 24,52 | 44 | 41,5 | 46,5 | 50 | 49,2 | 50,8 |
| 26 | M24 | 26 | 26,52 | 56 | 53 | 59 | 56 | 55,05 | 56,95 |
| 30 | M27 | 30 | 30,52 | 56 | 53 | 59 | 56 | 55,05 | 56,95 |
Table 1 (concluded)
| Nominal size1) |
For thread size |
e1),2) (auxiliary dimen- sion) |
h Nominal size Min. Max. |
r - |
t = |
2 |
Approx. mass (7,85 kg/dm3), per 1000 units, in kg |
||
| 9 | M8 | 2,9 | 3,8 | 3,2 | 4,4 | 1,6 | 0,5 | 1,68 | 9,57 |
| 11 | M10 | 2,9 | 3,8 | 3,2 | 4,4 | 1,6 | 0,5 | 1,68 | 8,85 |
| 13,5 | M12 | 3,7 | 4,9 | 3,9 | 5,9 | 2 | 0,7 | 1,68 | 18,2 |
| 17,5 | M16 | 4,45 | 5,9 | 4,9 | 6,9 | 2,4 | 0,8 | 2 | 31,4 |
| 22 | M20 | 5,25 | 7 | 6 | 8 | 2,8 | 0,9 | 2 | 56,9 |
| 24 | M22 | 6 | 8 | 7 | 9 | 3,2 | 1 | 2 | 82,3 |
| 26 | M24 | 6,26 | 8,5 | 7,3 | 9,7 | 3,2 | 1 | 3,8 | 128 |
| 30 | M27 | 6,26 | 8,5 | 7,3 | 9,7 | 3,2 | 1 | 3,8 | 119 |
|
1) Nominal size equal to dmin· 2) For washers with an (8±0,5) % taper, e=h (nominal size) - 0,04 b (nominal size). |
|||||||||
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
