Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Floorboard Thread Cutting Screws. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

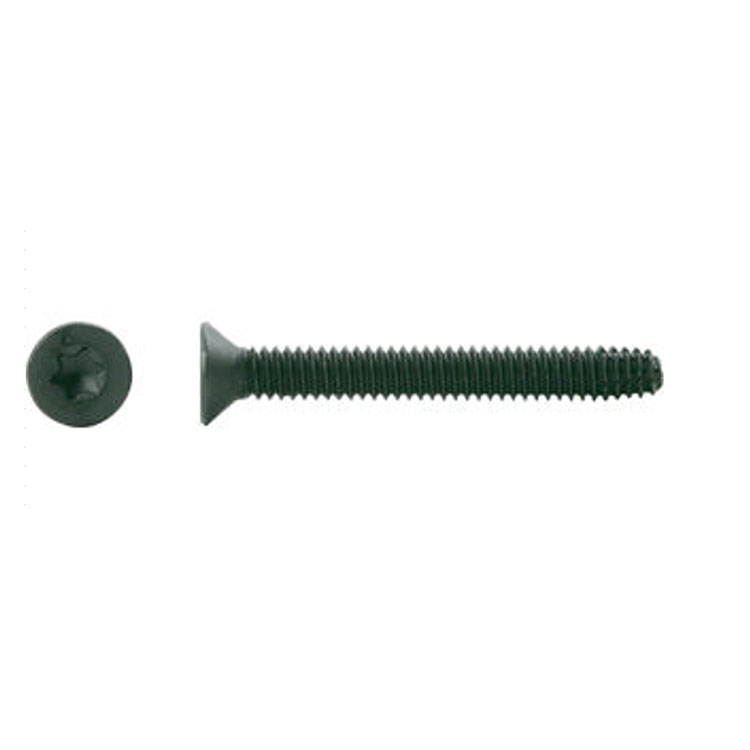

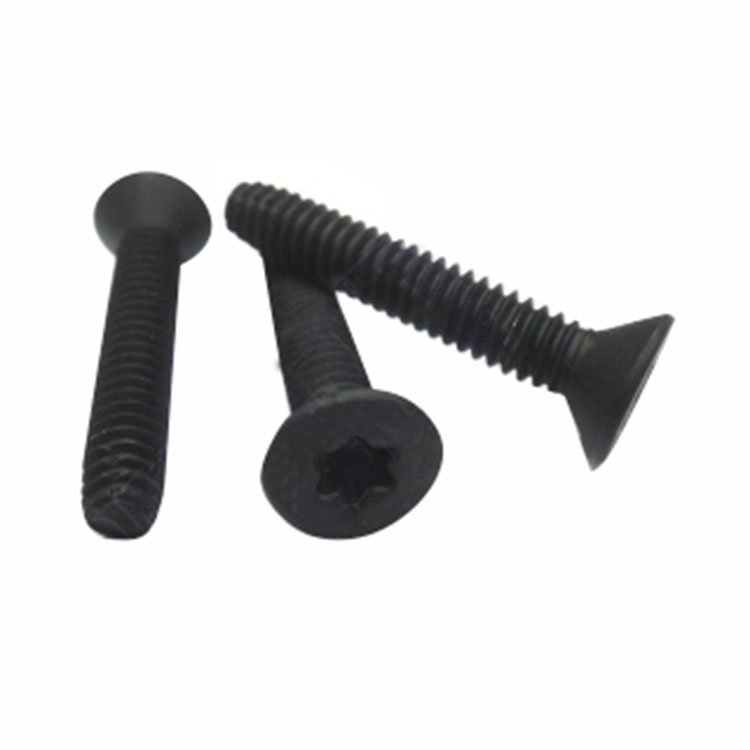

Floorboard Tapping Screw, Six Lobe Drive, Type F, Black Phosphate & Oil, Plain Finish, or bare metal finish may contain a light coating of oil.Designed specifically flooring applications; flooring screws assure a secure fasten in flooring applications.
| Dimensions: | See Table Below |
| Material and Mechanical: | SAE J933 |
| Head: | Flat |
| Drive: | Six Lobe (T30) |
| Dia/Thread Size: | See below technical sheet |
| Finish: | Black Phosphate Grade D of ASTM F1137/F1137M (black) |
| Point: | Type F |
| Grade: | Case Hardened |
| Type: | Floorboard Thread Cutting Screw |
| Size | G | T | B | F | Drive Size | |
| Head Dimensions | Recess Dimensions | |||||
| Max.Sharp | Abs. Min. | Ref. | Ref. | Gauge Penetr. Min. | ||
| 12-24 | .438 | .389 | .132 | .178 | .055 | T25 |
| 1/4-20 | .520 | .452 | .160 | .221 | .060 | T30 |
| 5/16-18 | .648 | .568 | .199 | .266 | .090 | T40 |
| 3/8-16 | .762 | .685 | .230 | .266 | .115 | T40 |
| 1/2-13 | .875 | .775 | .223 | .352 | .119 | T50 |
Tolerance on Length: Up to ¾", incl: -0.03". Over ¾", to 1 ½", incl: -0.05". Over 1 ½": -0.06". Fully Threaded
| Size | D | P | |
|
Major Diameter |
Point Diameter | ||
| Max. | Min. | Ref. | |
| 12-24 | .2160 | .2078 | .1740 |
| 1/4-20 | .2500 | .2408 | .2000 |
| 5/16-18 | .3125 | .3026 | .2570 |
| 3/8-16 | .3750 | .3643 | .3120 |
| 1/2-13 | .5000 | .4876 | .4230 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
