Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Hex Cap Screws. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
Hex Head Cap Screws are designed for easy assembly into a tapped hole. Hex Cap Screws meet SAE specifications with a specially designed washer face under the head and a chamfered point. Grade 5 is the most common grade used in manufacturing assembly. Zinc plating, retards the corrosion rate in a normal atmosphere.

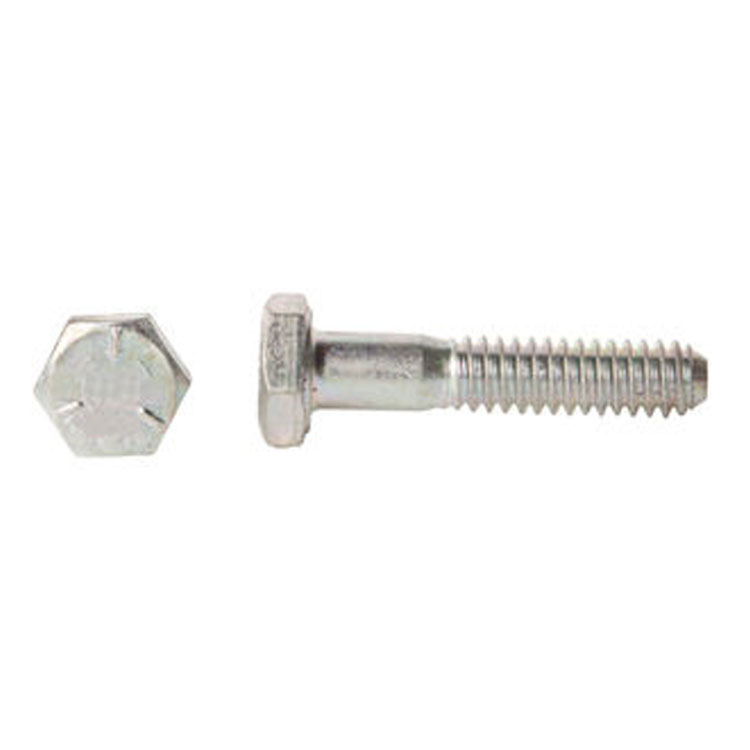

| Dimensions: | ASME B18.2.1 |
| Material and Mechanical: | SAE J429; Grade 2,5,8 |
| Head: | HEX |
| Dia/Thread Size: | ASME B1.1, UNC, UNF & UNS, Class 2A |
| Finish: | Fe/Zn 3AN per ASTM F1941/F1941M |
| Head Marking: | Grade 2: Manufacturer’s ID. |
| Grade 5: Manufacturer’s ID and 3 radial lines 120° apart. | |

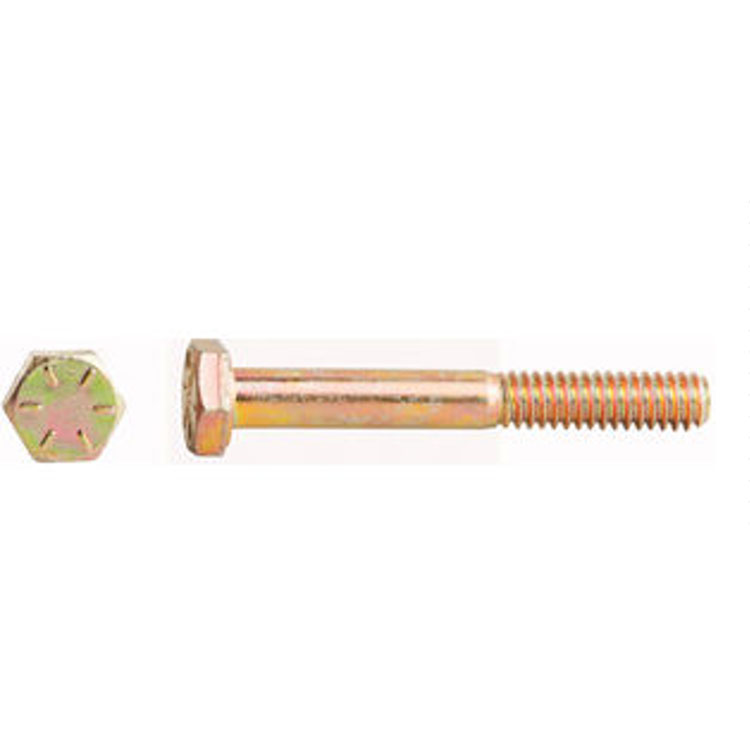

| Grade 8: Manufacturer’s ID and 6 radial lines 60° apart. | |
| Grade: | 2,5,8 |
| Type: | Hex Cap Screw |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
|
Nominal Size |
E | F | H | |||
|
Full Size Body Diameter |
Width Across Flats |
Head Height | ||||
| Max. | Min. | Max. | Min. | Max. | Min. | |
| 1/4 | 0.2500 | 0.2450 | 0.438 | 0.428 | 0.163 | 0.150 |
| 5/16 | 0.3125 | 0.3065 | 0.500 | 0.489 | 0.211 | 0.195 |
| 3/8 | 0.3750 | 0.3690 | 0.562 | 0.551 | 0.243 | 0.226 |
| 7/16 | 0.4375 | 0.4305 | 0.625 | 0.612 | 0.291 | 0.272 |
| 1/2 | 0.5000 | 0.4930 | 0.750 | 0.736 | 0.323 | 0.302 |
| 9/16 | 0.5625 | 0.5545 | 0.812 | 0.798 | 0.371 | 0.348 |
| 5/8 | 0.6250 | 0.6170 | 0.938 | 0.922 | 0.403 | 0.378 |
| 3/4 | 0.7500 | 0.7410 | 1.125 | 1.100 | 0.483 | 0.455 |
| 7/8 | 0.8750 | 0.8660 | 1.312 | 1.285 | 0.563 | 0.531 |
| 1 | 1.0000 | 0.9900 | 1.500 | 1.469 | 0.627 | 0.591 |
| 1 1/8 | 1.1250 | 1.1140 | 1.688 | 1.631 | 0.718 | 0.658 |
| 1 1/4 | 1.2500 | 1.2390 | 1.875 | 1.812 | 0.813 | 0.749 |
| 1 3/8 | 1.3750 | 1.3630 | 2.062 | 1.994 | 0.878 | 0.810 |
| 1 1/2 | 1.5000 | 1.4880 | 2.250 | 2.175 | 0.974 | 0.902 |
Length and Thread Length per ASME B18.2.1
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
Dial number +86-573-83772218 or email to bob@jjbfasteners.com, your request will be promptly replied.
Address
Zhifu Centre,Bldg. No.15-1304,1305,Xiuzhou, Jiaxing, Zhejiang, China
Tel
We stand behind our products. All products are manufactured to right specification and high quality standard. Any items found defective or in shortage , an immediate investigation will be conducted and corrective action report will be issued. Claims and returns are given a nice care here.
You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. We have over 18 years experience in exporting various kinds of carbon steel, stainless steel, Bi-Metal fasteners.
Dial number 0086 573 83772218 or email to sales@jjbfasteners.com, your request will be promptly replied.
We rigidly carry out quality control to each step of production:
