Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Plow Bolts. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
The flat head plow bolt is used primarily in gang plows, road graters, scoop shovels, and other applications where a smooth surface is desired. A plow bolt has a countersunk square neck. Plain finish, or bare metal, may or may not have a coating of light oil to resist corrosion. Zinc plating, retards the corrosion rate in a normal atmosphere. Grade 5 is the most common grade used in manufacturing assembly.While Grade 8 has a greater tensile strength than Grade 5.
| Dimensions: | ASME B18.9 |
| Material and Mechanical: | SAE J429, Grade 2,5,8 |
| Head: | No.3 Flat head Square Neck |
| Dia/Thread Size: | ASME B1.1, UNC or UNF, Class 2A |
| Finish: | Light Protective Oil |

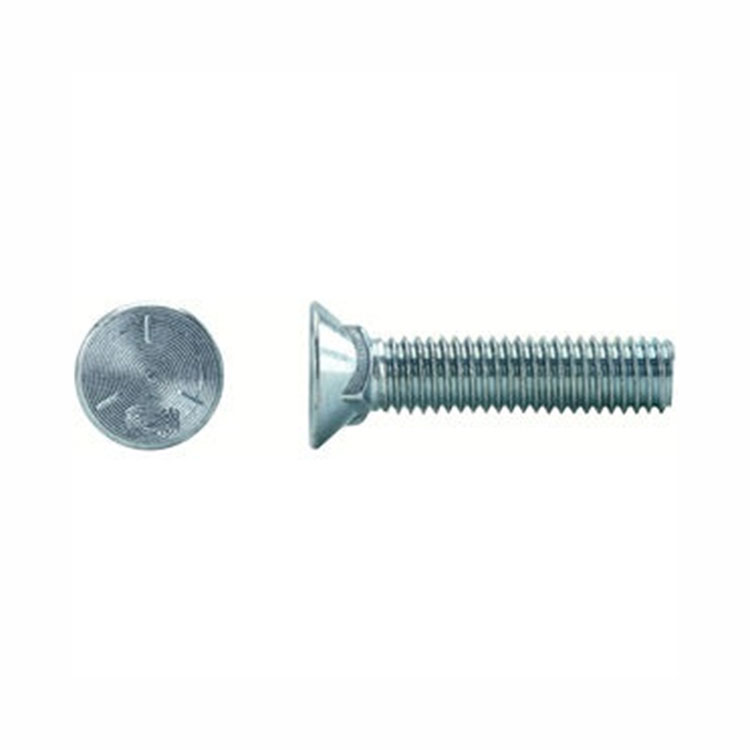

| Head Marking: | Grade 5: Manufacturer ID and three radial lines 120° apart |

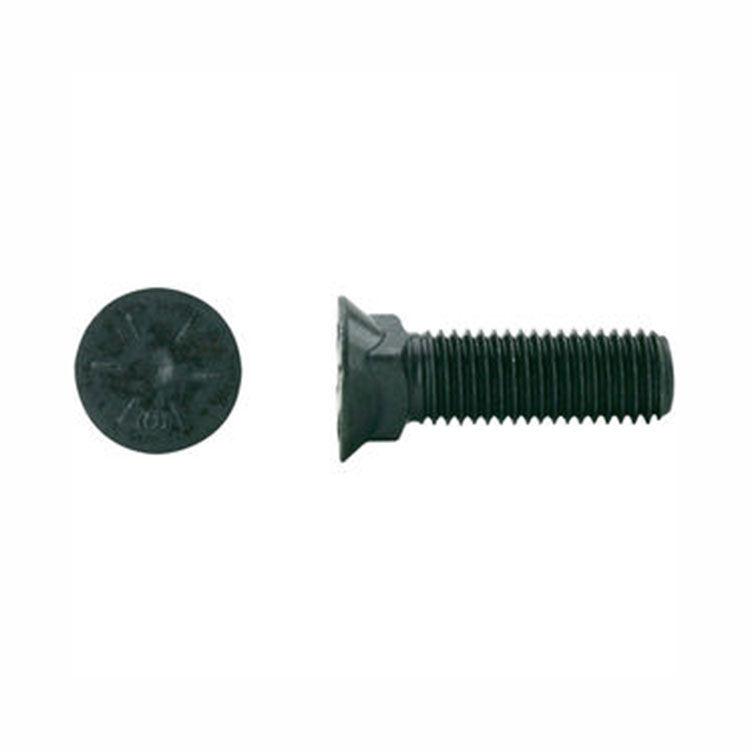

| Grade 8: Manufacturer’s ID and six radial lines 60° apart | |
| Grade: | 2,5,8 |
| Type: | Plow Bolts |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
| D | E | A | F | S | B | R | ||||||
|
Nominal or Basic Bolt Diameter |
Diameter of Full- Sized Body |
Diameter of Head |
Feed Thickness |
Depth of Square and Head |
Width of Square |
Radius on Corners of Square |
||||||
| Max. | Min. | Max. |
Min. Sharp |
Abs Min. w/ Flat |
Max. | Max. | Min. | Max. |
Min. Basic |
|||
| Regular head | ||||||||||||
| 5/16 | 0.3125 | 0.312 | 0.299 | 0.605 | 0.578 | 0.538 | 0.040 | 0.269 | 0.228 | 0.325 | 0.313 | 0.031 |
| 3/8 | 0.3750 | 0.375 | 0.360 | 0.708 | 0.671 | 0.624 | 0.050 | 0.312 | 0.262 | 0.387 | 0.375 | 0.047 |
| 7/16 | 0.4375 | 0.438 | 0.421 | 0.826 | 0.781 | 0.729 | 0.058 | 0.364 | 0.306 | 0.450 | 0.438 | 0.047 |
| 1/2 | 0.5000 | 0.500 | 0.483 | 0.945 | 0.890 | 0.831 | 0.068 | 0.417 | 0.349 | 0.515 | 0.500 | 0.047 |
| 9/16 | 0.5625 | 0.592 | 0.544 | 1.045 | 1.000 | 0.924 | 0.072 | 0.461 | 0.389 | 0.578 | 0.563 | 0.078 |
| 5/8 | 0.6250 | 0.657 | 0.606 | 1.147 | 1.094 | 1.013 | 0.080 | 0.506 | 0.426 | 0.640 | 0.625 | 0.078 |
| 3/4 | 0.7500 | 0.782 | 0.729 | 1.303 | 1.250 | 1.169 | 0.080 | 0.541 | 0.461 | 0.765 | 0.750 | 0.078 |
| 7/8 | 0.8750 | 0.938 | 0.853 | 1.512 | 1.469 | 1.344 | 0.100 | 0.626 | 0.526 | 0.906 | 0.875 | 0.094 |
Thread Length per ASME B18.9, 1/2”diameter and smaller may be fully threaded
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
