Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Imperial Carriage Bolts. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

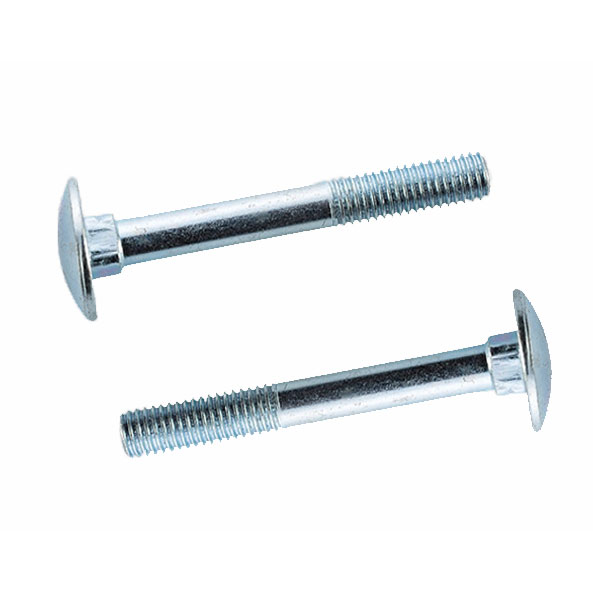

Carriage bolts are pushed into a hole the same size as the shank and then hammered in the rest of the way, where the square shoulder locks it firmly in place. Used whenever a smooth finish surface is needed so that nothing becomes snagged on the fastener. Galvanized finish allows for greater corrosion resistance, used in outdoor furniture.
| Dimensions: | ASME B18.5 |
| Material and Mechanical: | SAE J429; Grade 2,5,8 |
| Grade A per ASTM A307 | |

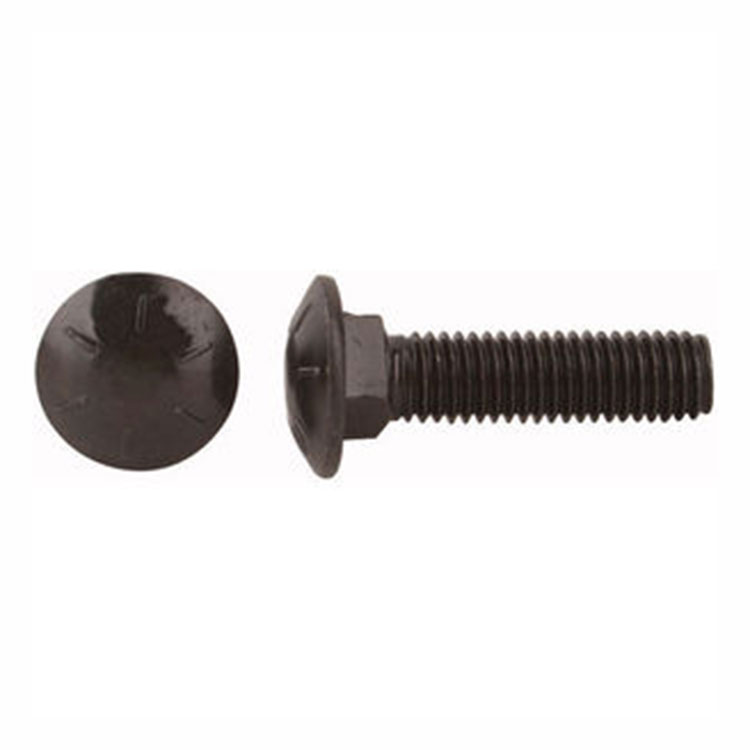

| Head: | Round head Square Neck |
| Dia/Thread Size: | ASME B1.1, UNC Class 2A |
| Finish: | Fe/Zn 3AN per ASTM F1941/F1941M |
| Galvanize per ASTM A153/A153M or ASTM F2329/F2329M | |
| Head Marking: | Grade 2: Manufacturer’s ID. |
| Grade 5: Manufacturer’s ID and 3 radial lines 120° apart. | |
| Grade 8: Manufacturer’s ID and 6 radial lines 60° apart. | |
| Grade A: Manufacturer ID and “307A” | |
| Grade: | 2,5,8, A307 A |
| Type: | Carriage Bolt |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
|
Nominal Size or Basic Bolt Diameter |
E | A | H | O | P | Q | R | ||||||
|
Body Diameter |
Head Diameter |
Head Height | Square Width |
Square Depth |
Corner Radius on Square |
Fillet Radius |
|||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max. | ||
| 1/4 | 0.2500 | 0.260 | 0.213 | 0.594 | 0.563 | 0.145 | 0.125 | 0.260 | 0.245 | 0.156 | 0.125 | 0.031 | 0.031 |
| 5/16 | 0.3125 | 0.324 | 0.272 | 0.719 | 0.688 | 0.176 | 0.156 | 0.324 | 0.307 | 0.187 | 0.156 | 0.031 | 0.031 |
| 3/8 | 0.3750 | 0.388 | 0.329 | 0.844 | 0.782 | 0.208 | 0.188 | 0.388 | 0.368 | 0.219 | 0.188 | 0.047 | 0.031 |
| 7/16 | 0.4375 | 0.452 | 0.385 | 0.969 | 0.907 | 0.239 | 0.219 | 0.452 | 0.431 | 0.250 | 0.219 | 0.047 | 0.031 |
| 1/2 | 0.5000 | 0.515 | 0.444 | 1.094 | 1.032 | 0.270 | 0.250 | 0.515 | 0.492 | 0.281 | 0.250 | 0.047 | 0.031 |
| 5/8 | 0.6250 | 0.642 | 0.559 | 1.344 | 1.219 | 0.344 | 0.313 | 0.642 | 0.616 | 0.344 | 0.313 | 0.078 | 0.062 |
| 3/4 | 0.7500 | 0.768 | 0.678 | 1.594 | 1.469 | 0.406 | 0.375 | 0.768 | 0.741 | 0.406 | 0.375 | 0.078 | 0.062 |
Gade 2,5,8 per SAE J429: Nominal thread length: 2d + 1/4 for lengths up to 6". 2d + 1/2 for lengths over 6"
Grade A per ASTM A307: Full Diameter Body on product over 12” in length. Full or Reduced Diameter Body 6” < thru 12” lengths
(Reduced body diameter having a limit equal to the minimum pitch diameter)
Exceptions: bolts less than or equal to 6 inches in length shall be fully threaded. Bolts longer than 6” shall have 6” of full form threads.
