Jiaxing Join Fasteners Co.,Ltd. supply a wide range of DIN603 Carriage Bolt. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

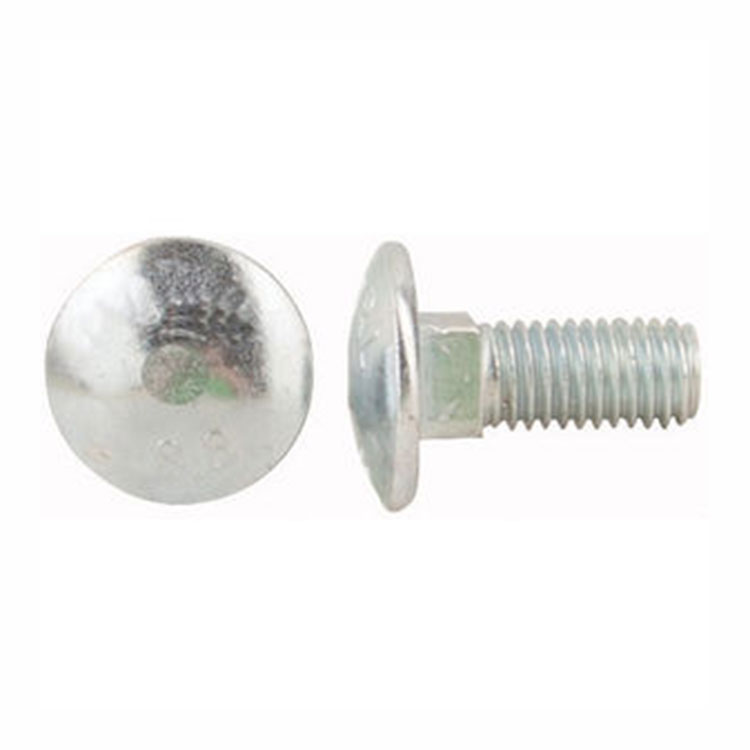

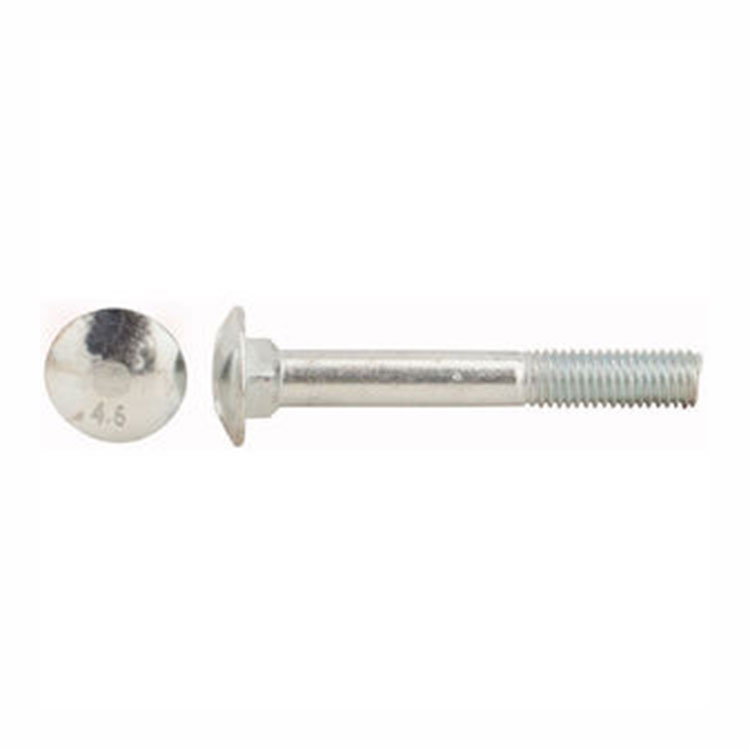

Carriage bolts are pushed into a hole the same size as the shank and then hammered in the rest of the way, where the square shoulder locks it firmly in place. Used whenever a smooth finish surface is needed so that nothing becomes snagged on the fastener. Galvanized finish allows for greater corrosion resistance, used in outdoor furniture. Zinc plating retards the corrosion rate in a normal atmosphere.
| Dimensions: | DIN 603; For dimensions not shown below, refer to DIN 603 (Full or reduced body diameter having a limit equal to the minimum pitch diameter) |
| Material and Mechanical: | ISO 898-1; Class 4.6 and 8.8 |
| Head: | Round head Square Neck |
| Dia/Thread Size: | 8g per ISO 724; ISO 965-1 |
| Finish: | ISO 4042/Zn5/An |
| Head Marking: | Class 4.6: Manufacturer’s ID and 4.6 |
| Class 8.8: Manufacturer’s ID and 8.8 | |
| Grade: | 4.6 and 8.8 |
| Type: | Metric Carriage Bolt |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
| Size | A | E | P | H | R | Q | O | |||||
|
Head Diameter |
Body Diameter |
Square Depth |
Head Height |
Fillet Radius |
Corner Radius on Square |
Square Width | ||||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max. | Max. | Min. | Max. | |
| M5 | 12.45 | 13.55 | 4.52 | 5 | 2.90 | 4.10 | 2.70 | 3.30 | 0.5 | 0.75 | 4.52 | 5.48 |
| M6 | 15.45 | 16.55 | 5.52 | 6 | 3.40 | 4.60 | 3.12 | 3.88 | 0.5 | 0.90 | 5.52 | 6.48 |
| M8 | 19.35 | 20.65 | 7.42 | 8 | 4.40 | 5.60 | 4.12 | 4.88 | 0.5 | 1.20 | 7.42 | 8.58 |
| M10 | 23.35 | 24.65 | 9.42 | 10 | 5.40 | 6.60 | 4.62 | 5.38 | 0.5 | 1.50 | 9.42 | 10.58 |
| M12 | 29.35 | 30.65 | 11.30 | 12 | 7.25 | 8.75 | 6.05 | 6.95 | 1.0 | 1.80 | 11.30 | 12.70 |
| M16 | 37.20 | 38.80 | 15.30 | 16 | 11.10 | 12.90 | 8.05 | 8.95 | 1.0 | 2.40 | 15.30 | 16.70 |
| M20 | 45.20 | 46.80 | 19.16 | 20 | 14.10 | 15.90 | 9.95 | 11.05 | 1.0 | 3.00 | 19.16 | 20.84 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
