Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Heavy Hex Structural Bolts A325 Type 1. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

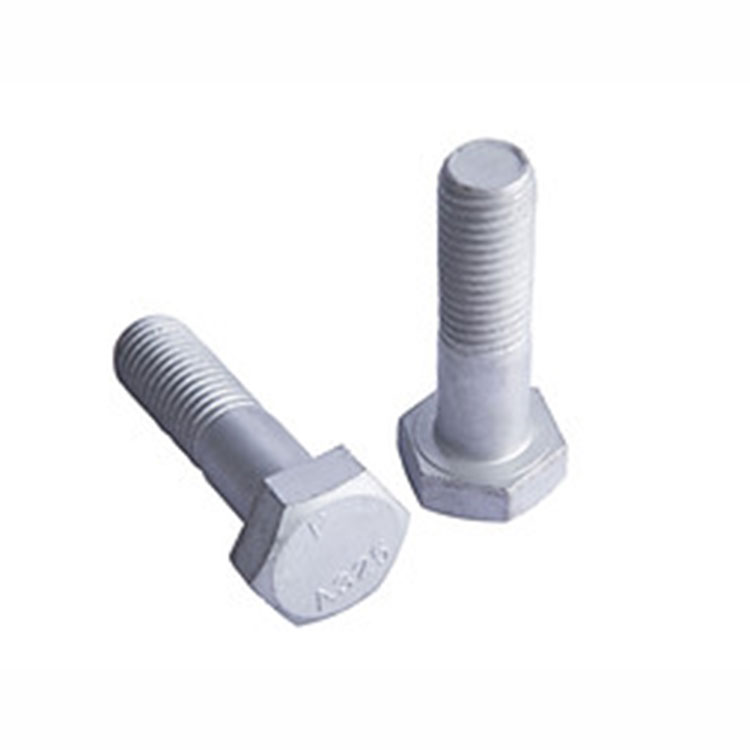

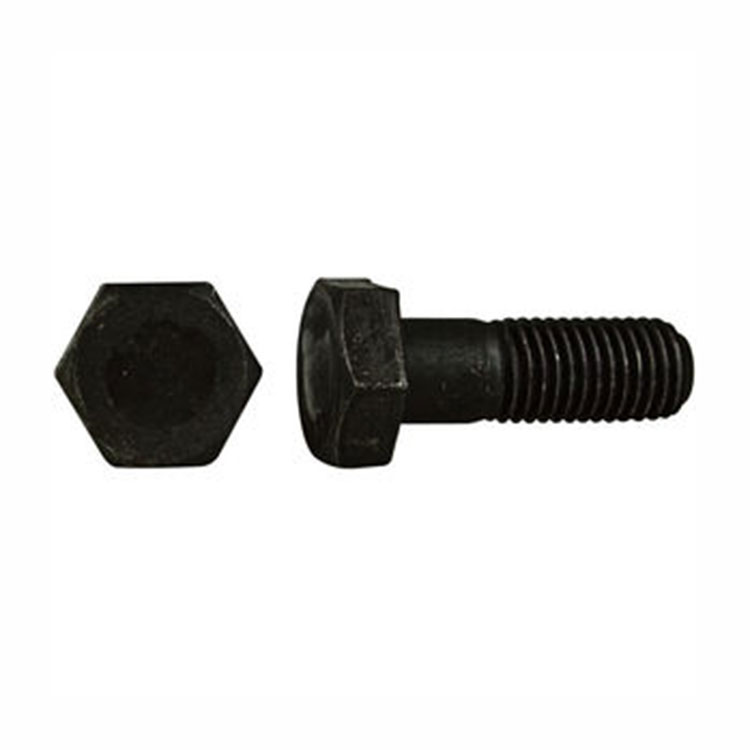

Structural Bolts are a specialized heavy type of hex bolt intended for use in large structures, such as buildings and bridges. This bolt is designed to withstand the loads of steel-to-steel structural connections. They contain a flat, washer-faced bearing surface and a chamfered thread point. Galvanized plating protects the bolt from corrosion; typically used in outdoor applications. Fastening bolted joints in steel structures.
| Dimensions: | ASME B18.2.6 |
| Material and Mechanical: | ASTM F3125/F3125M, Grade A325, Type 1 |
| Head: | HEX |
| Dia/Thread Size: | ASME B1.1 UNC Class 2A before coating |
| Finish: | Hot Dip Galvanize per ASTM A153/A153M or ASTM F2329/F2329M |
| Head Marking: | Manufacturer’s ID and A325 |
| Grade: | A325 |
| Type: | Structural Bolt |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
|
Nominal Size |
E | F | H | R | Lt | ||||
|
Full Size Body Diameter |
Width Across Flats |
Head Height |
Fillet Radius |
Thread Length |
|||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Basic | |
| 1/2 | 0.515 | 0.482 | 0.875 | 0.850 | 0.323 | 0.302 | 0.031 | 0.009 | 1.00 |
| 5/8 | 0.642 | 0.605 | 1.062 | 1.031 | 0.403 | 0.378 | 0.062 | 0.021 | 1.25 |
| 3/4 | 0.768 | 0.729 | 1.250 | 1.212 | 0.483 | 0.455 | 0.062 | 0.021 | 1.38 |
| 7/8 | 0.895 | 0.852 | 1.438 | 1.394 | 0.563 | 0.531 | 0.062 | 0.031 | 1.50 |
| 1 | 1.022 | 0.976 | 1.625 | 1.575 | 0.627 | 0.591 | 0.093 | 0.062 | 1.75 |
| 1 1/8 | 1.149 | 1.098 | 1.812 | 1.756 | 0.718 | 0.658 | 0.093 | 0.062 | 2.00 |
| 1 1/4 | 1.277 | 1.223 | 2.000 | 1.938 | 0.813 | 0.749 | 0.093 | 0.062 | 2.00 |
| 1 3/8 | 1.404 | 1.345 | 2.188 | 2.119 | 0.878 | 0.810 | 0.093 | 0.062 | 2.25 |
| 1 1/2 | 1.531 | 1.470 | 2.375 | 2.300 | 0.974 | 0.902 | 0.093 | 0.062 | 2.25 |
Dimensions above are prior to coating
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
