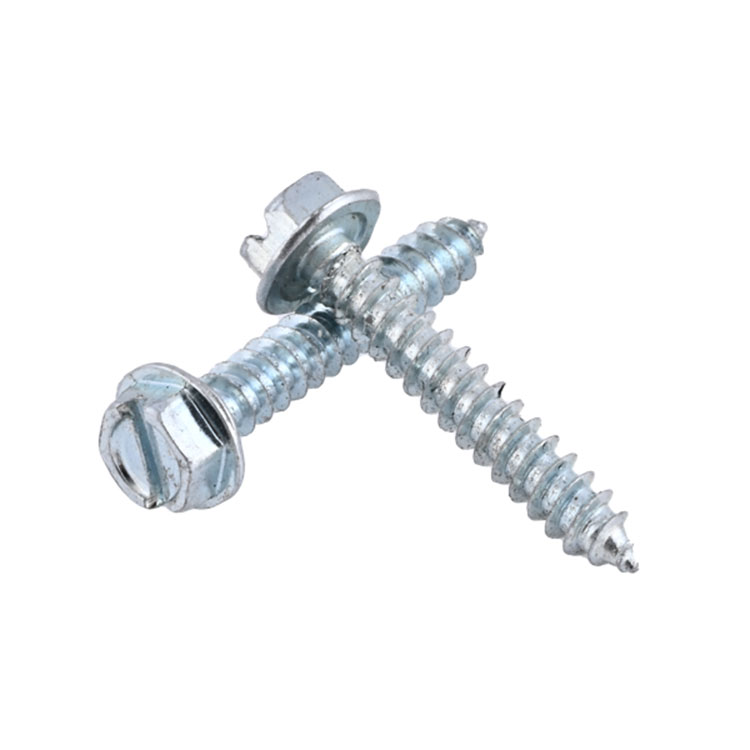

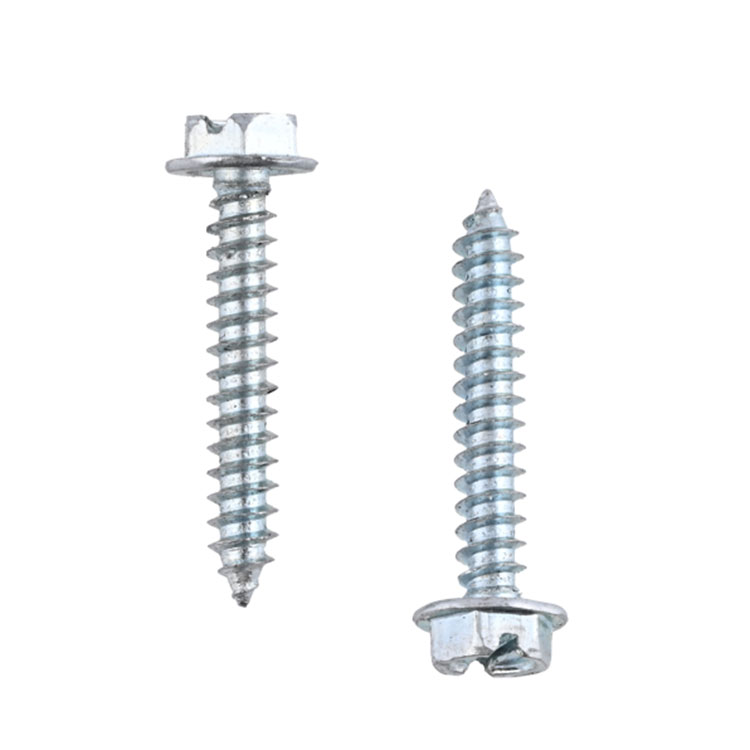

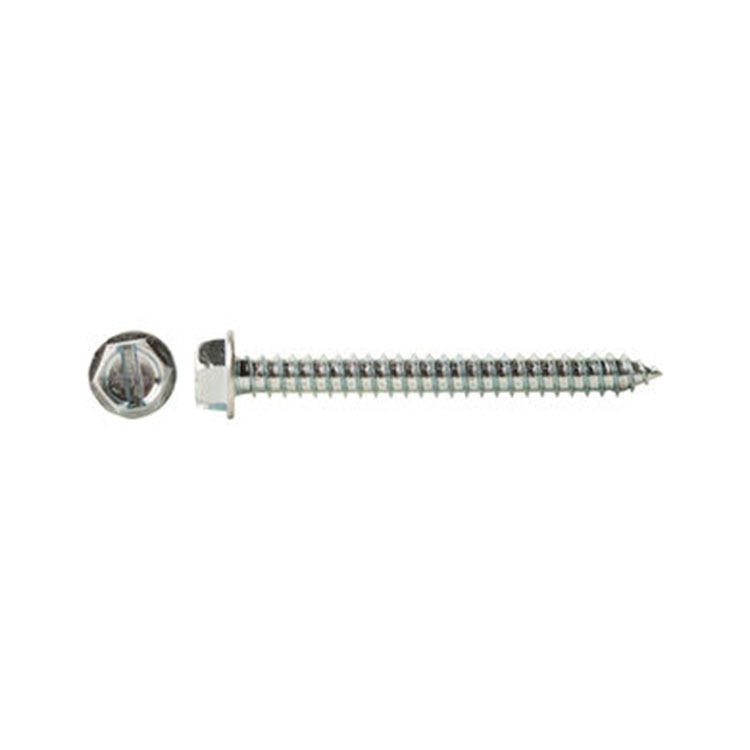

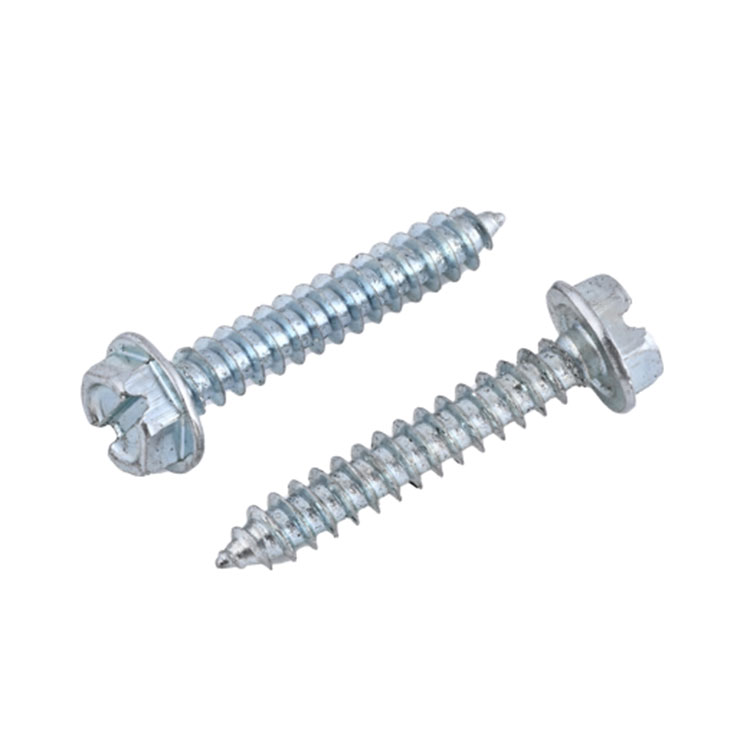

Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Slotted Hex Washer Sheet Metal Screw Type AB. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
Sheet Metal Screw offers a sharp point to engage in material faster, drills with less effort and have safer installation.
They are use in thin metals 0.015-0.050 thick. Used with drilled, punched or nested holes in sheet metal, resin impregnated plywood, asbestos combinations among others.
| Dimensions: | ASME B18.6.3 All sizes are fully threaded |
| Material and Mechanical: | ASME B18.6.3 |
| Head: | Indented Hex Washer |
| Drive: | Slotted |
| Dia/Thread Size: | See below technical sheet |
| Finish: | Fe/Zn 3AN per ASTM F1941/F1941M |
| Point: | Type AB |
| Grade: | Case Hardened |
| Type: | Sheet Metal Screw |
|
Nominal Size |
A | H | B | U | Protrusion | J | T | |||||||
| WAF | Head Height |
Washer Diameter |
Washer Thickness |
Slot Width | Slot Depth | |||||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | Max. | Min. | Max. | Min. | ||
| #4 | .188 | .181 | .060 | .049 | .243 | .225 | .019 | .011 | .029 | .039 | .031 | .042 | .025 | |
| #6 | .250 | .244 | .093 | .080 | .328 | .302 | .025 | .015 | .048 | .048 | .039 | .053 | .033 | |
| #7 | .250 | .244 | .093 | .080 | .328 | .302 | .029 | .017 | .048 | .048 | .039 | .053 | .033 | |
| #8 | .250 | .244 | .110 | .096 | .348 | .322 | .031 | .019 | .058 | .054 | .045 | .074 | .052 | |
| #10 | .312 | .305 | .120 | .105 | .414 | .384 | .031 | .019 | .063 | .060 | .050 | .080 | .057 | |
| #12 | .312 | .305 | .155 | .139 | .432 | .398 | .039 | .022 | .083 | .067 | .056 | .103 | .077 | |
| 1/4 | .375 | .367 | .190 | .172 | .520 | .480 | .050 | .030 | .103 | .075 | .064 | .111 | .083 | |
| 5/16 | .500 | .489 | .230 | .208 | .676 | .624 | .055 | .035 | .125 | .084 | .072 | .134 | .100 | |
| 3/8 | .562 | .551 | .295 | .270 | .780 | .720 | .063 | .037 | .162 | .094 | .081 | .168 | .131 | |
|
Nominal Size |
Threads per Inch |
D | d | ||
| Major Diameter | Minor Diameter | ||||
| Max. | Min. | Max. | Min. | ||
| #4 | 24 | 0.114 | 0.108 | 0.086 | 0.082 |
| #6 | 20 | 0.139 | 0.132 | 0.104 | 0.099 |
| #7 | 19 | 0.154 | 0.147 | 0.115 | 0.109 |
| #8 | 18 | 0.166 | 0.159 | 0.122 | 0.116 |
| #10 | 16 | 0.189 | 0.182 | 0.141 | 0.135 |
| #12 | 14 | 0.215 | 0.208 | 0.164 | 0.157 |
| 1/4 | 14 | 0.246 | 0.237 | 0.192 | 0.185 |
| 5/16 | 12 | 0.315 | 0.306 | 0.244 | 0.236 |
| 3/8 | 12 | 0.380 | 0.371 | 0.309 | 0.299 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
