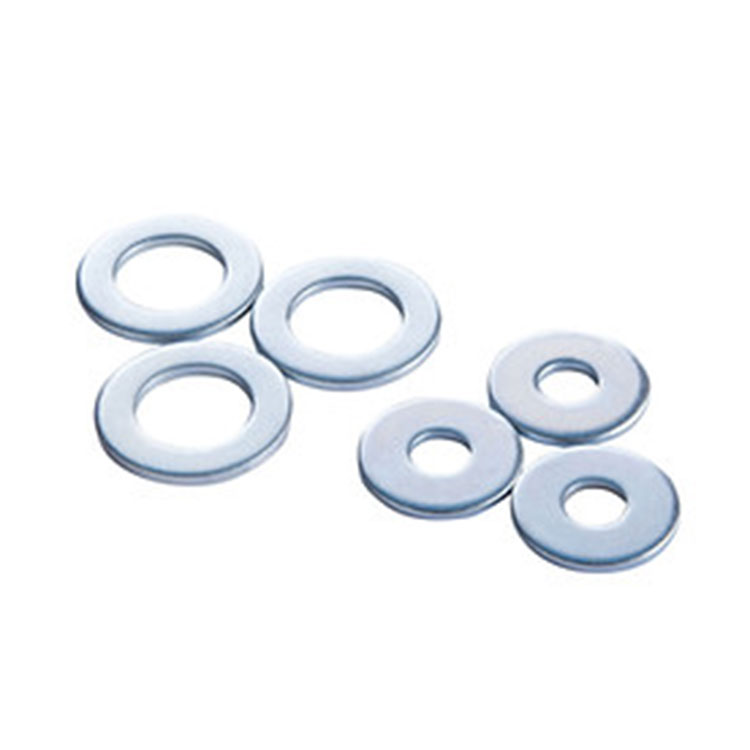

Jiaxing Join Fasteners Co.,Ltd. supply a wide range of DIN125A Flat Washer. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
DIN125A Flat Washer has high strength, corrosion resistance and good flexibility. It's usually made of high quality stainless steel or galvanized steel, has excellent tensile strength and corrosion resistance, and can be used in harsh working environments.
| Dimensions: | DIN 125, Type A |
| Material and Mechanical: | Low Carbon Steel 140HV – 250HV |
| Finish: | ISO 4042/Zn3/An/T0 (12 hours to red rust) |
| Head Marking: | No |
| Grade: | HV140 |
| Type: | General Purpose Flat Washer |
|
Nominal Size |
A | B | C | |||
| Inside Diameter | Outside Diameter | Thickness | ||||
| Max. | Min. | Max. | Min. | Max. | Min. | |
| M1.6 | 1.84 | 1.7 | 4 | 3.70 | 0.35 | 0.25 |
| M2 | 2.34 | 2.2 | 5 | 4.70 | 0.35 | 0.25 |
| M2.5 | 2.84 | 2.7 | 6 | 5.70 | 0.55 | 0.45 |
| M3 | 3.38 | 3.2 | 7 | 6.64 | 0.55 | 0.45 |
| M3.5 | 3.88 | 3.7 | 8 | 7.64 | 0.55 | 0.45 |
| M4 | 4.48 | 4.3 | 9 | 8.64 | 0.90 | 0.70 |
| M5 | 5.48 | 5.3 | 10 | 9.64 | 1.10 | 0.90 |
| M6 | 6.62 | 6.4 | 12 | 11.57 | 1.80 | 1.40 |
| M7 | 7.62 | 7.4 | 14 | 13.57 | 1.80 | 1.40 |
| M8 | 8.62 | 8.4 | 16 | 15.57 | 1.80 | 1.40 |
| M10 | 10.77 | 10.5 | 20 | 19.48 | 2.20 | 1.80 |
| M12 | 13.27 | 13.0 | 24 | 23.48 | 2.70 | 2.30 |
| M14 | 15.27 | 15.0 | 28 | 27.48 | 2.70 | 2.30 |
| M16 | 17.27 | 17.0 | 30 | 29.48 | 3.30 | 2.70 |
| M18 | 19.33 | 19.0 | 34 | 33.38 | 3.30 | 2.70 |
| M20 | 21.33 | 21.0 | 37 | 36.38 | 3.30 | 2.70 |
| M22 | 23.33 | 23.0 | 39 | 38.38 | 3.30 | 2.70 |
| M24 | 25.33 | 25.0 | 44 | 43.38 | 4.30 | 3.70 |
| M26 | 27.33 | 27.0 | 50 | 49.38 | 4.30 | 3.70 |
| M27 | 28.33 | 28.0 | 50 | 49.38 | 4.30 | 3.70 |
| M30 | 31.39 | 31.0 | 56 | 55.26 | 4.30 | 3.70 |
| M33 | 34.62 | 34.0 | 60 | 58.80 | 5.60 | 4.40 |
| M36 | 37.62 | 37.0 | 66 | 64.80 | 5.60 | 4.40 |
| M39 | 40.62 | 40.0 | 72 | 70.80 | 6.60 | 5.40 |
| M42 | 43.62 | 43.0 | 78 | 76.80 | 8.00 | 6.00 |
| M45 | 46.62 | 46.0 | 85 | 83.60 | 8.00 | 6.00 |
| M48 | 50.62 | 50.0 | 92 | 90.60 | 9.00 | 7.00 |
| M50 | 52.74 | 52.0 | 92 | 90.60 | 9.00 | 7.00 |
| M52 | 54.74 | 54.0 | 98 | 96.60 | 9.00 | 7.00 |
| M56 | 58.74 | 58.0 | 105 | 103.60 | 10.00 | 8.00 |
| M64 | 66.74 | 66.0 | 115 | 113.60 | 10.00 | 8.00 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
Dial number +86-573-83772218 or email to bob@jjbfasteners.com, your request will be promptly replied.
Address
Zhifu Centre,Bldg. No.15-1304,1305,Xiuzhou, Jiaxing, Zhejiang, China
Tel
We stand behind our products. All products are manufactured to right specification and high quality standard. Any items found defective or in shortage , an immediate investigation will be conducted and corrective action report will be issued. Claims and returns are given a nice care here.
You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. We have over 18 years experience in exporting various kinds of carbon steel, stainless steel, Bi-Metal fasteners.
Dial number 0086 573 83772218 or email to sales@jjbfasteners.com, your request will be promptly replied.
We rigidly carry out quality control to each step of production:
