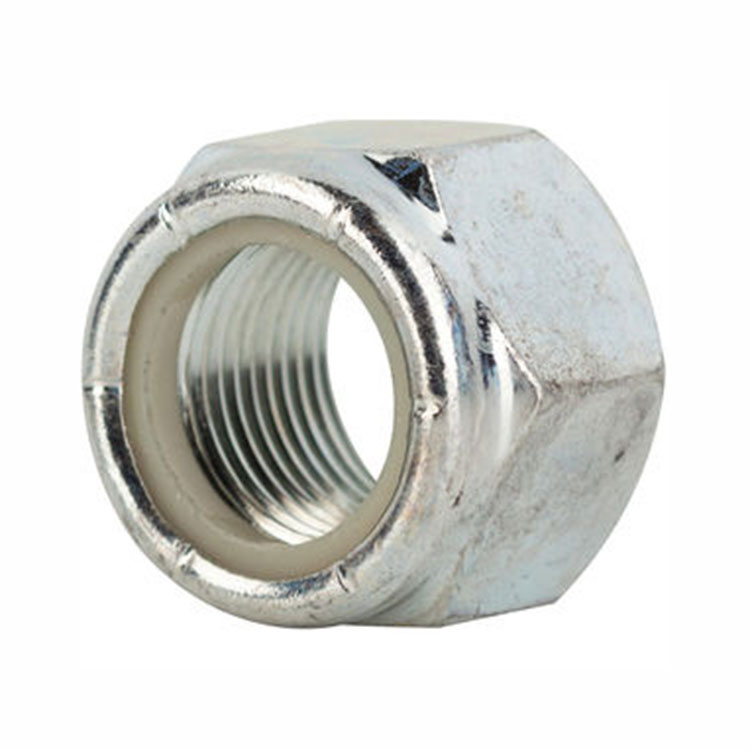

Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Hex Nylon Insert Locknut (NE). You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
Nylon nut is a new type of high vibration and anti-tightness parts, widely used in a variety of mechanical and electrical products. It can be applied to the temperature -50 ~ 100℃ environment, especially suitable for large vibration, large temperature changes. Nylon nut features include:
- Insulation, non-magnetic, good acid and alkali resistance.
- Light weight, some materials are resistant to high temperature, high strength and corrosion.
- Some models have a locking function, suitable for use with plastic or metal screws.
| Dimensions: | ASME B18.16.6 |
| Material and Mechanical: | Grade 2 per ASME B18.16.6 Nylon 6/6 material shall be in compliance with current RoHS European Union Directive. |
| Threads: | ASME B1.1, UNC, UNS & UNF, Class 2B |
| Finish: | Fe/Zn 3AN per ASTM F1941/F1941M |
| Head Marking: | Not be required |
| Grade: | 2 |
| Type: | Nylon Insert Lock Nut |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
|
Nominal Size |
C | A | D | ||
| Thickness |
Width Across Flats |
Hex Height | |||
| Max. | Min. | Max. | Min. | Min. | |
| 1/4 | .328 | .298 | .439 | .430 | .225 |
| 5/16 | .359 | .329 | .502 | .489 | .250 |
| 3/8 | .468 | .438 | .564 | .551 | .335 |
| 7/16 | .468 | .438 | .627 | .616 | .324 |
| 1/2 | .609 | .579 | .752 | .736 | .464 |
| 9/16 | .656 | .626 | .877 | .861 | .469 |
| 5/8 | .765 | .735 | .940 | .922 | .593 |
| 3/4 | .890 | .860 | 1.064 | 1.052 | .742 |
| 7/8 | .999 | .969 | 1.252 | 1.239 | .790 |
| 1 | 1.078 | 1.016 | 1.440 | 1.427 | .825 |
| 1 1/8 | 1.203 | 1.141 | 1.627 | 1.614 | .930 |
| 1 1/4 | 1.422 | 1.360 | 1.815 | 1.801 | 1.125 |
| 1 3/8 | 1.609 | 1.547 | 2.008 | 1.973 | 1.282 |
| 1 1/2 | 1.640 | 1.578 | 2.197 | 2.159 | 1.313 |
