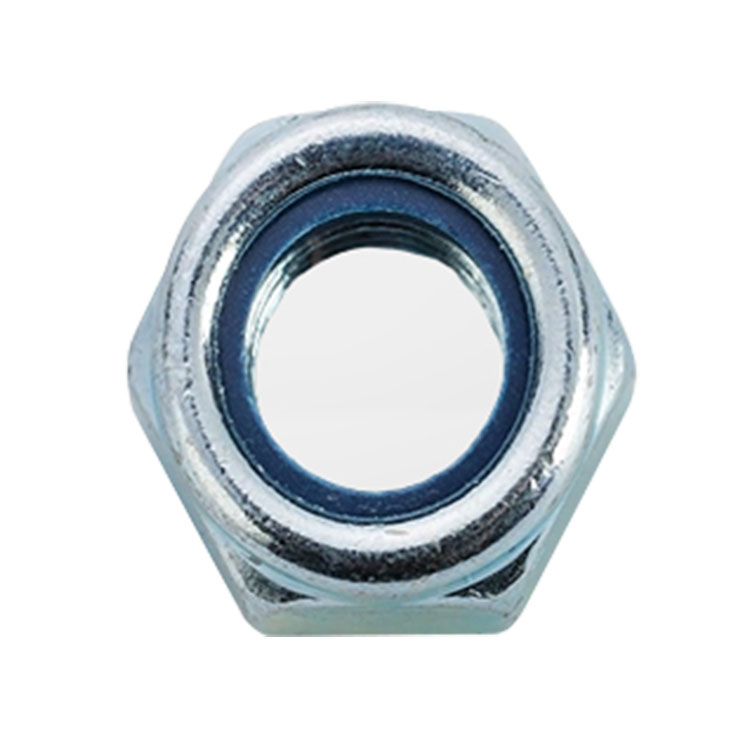

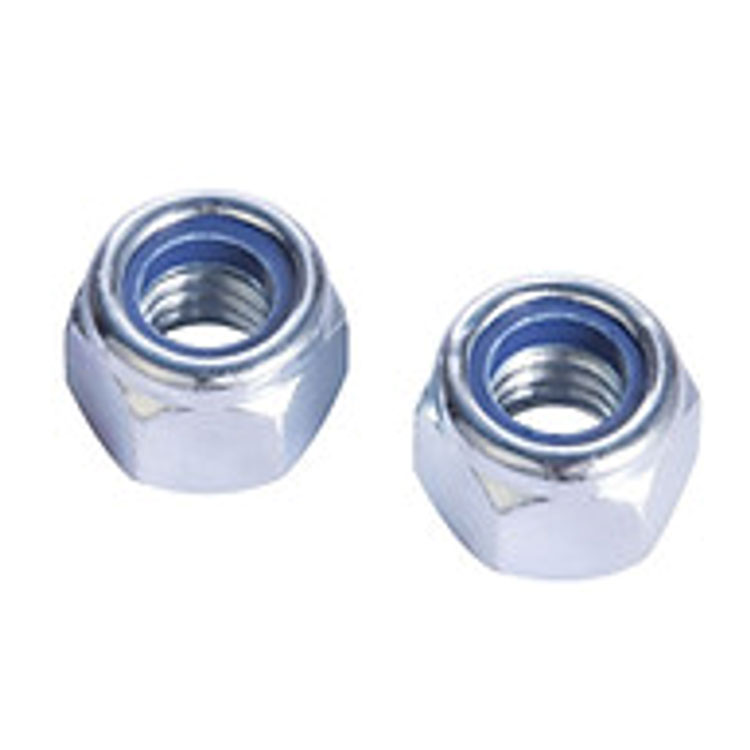

Jiaxing Join Fasteners Co.,Ltd. supply a wide range of DIN985 Nylon Insert Lock Nuts. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
Threads are molded into the nylon insert locking the bolt into place. Nylon Insert Lock Nuts typically have a cased metal outside formed into a hex pattern easily torqued by a wrench or socket. Nylon nut features include:
- Insulation, non-magnetic, good acid and alkali resistance.
- Light weight, some materials are resistant to high temperature, high strength and corrosion.
- Some models have a locking function, suitable for use with plastic or metal screws .
| Dimensions: | DIN 985 |
| Material and Mechanical: | per DIN 267 Part 4 or ISO 898-2 |
| Nylon 6/6 material shall be in compliance with current RoHS European Union Directive. | |
| Threads: | 6H per ISO 724; ISO 965-1 |
| Finish: | ISO 4042/Zn5/An |
| Head Marking: | S 8 |
| Grade: | 8 |
| Type: | Nylon Insert Lock Nut |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
| Diameter | A | C | ||
| Width Across Flats | Thickness | |||
| Min. | Max. | Min. | Max. | |
| M2.5 | 4.90 | 5.0 | 3.32 | 3.8 |
| M3 | 5.32 | 5.5 | 3.70 | 4.0 |
| M3.5 | 5.82 | 6.0 | 4.02 | 4.5 |
| M4 | 6.78 | 7.0 | 4.70 | 5.0 |
| M5 | 7.78 | 8.0 | 4.70 | 5.0 |
| M6 | 9.78 | 10.0 | 5.70 | 6.0 |
| M7 | 10.73 | 11.0 | 7.14 | 7.5 |
| M8 | 12.73 | 13.0 | 7.64 | 8.0 |
| M10 | 16.73 | 17.0 | 9.64 | 10.0 |
| M12 | 18.67 | 19.0 | 11.57 | 12.0 |
| M14 | 21.67 | 22.0 | 13.30 | 14.0 |
| M16 | 23.67 | 24.0 | 15.30 | 16.0 |
| M18 | 26.16 | 27.0 | 17.66 | 18.5 |
| M20 | 29.16 | 30.0 | 18.70 | 20.0 |
| M22 | 31.00 | 32.0 | 20.70 | 22.0 |
| M24 | 35.00 | 36.0 | 22.70 | 24.0 |
| M27 | 40.00 | 41.0 | 25.70 | 27.0 |
| M30 | 45.00 | 46.0 | 28.70 | 30.0 |
| M33 | 49.00 | 50.0 | 31.40 | 33.0 |
| M36 | 53.80 | 55.0 | 34.40 | 36.0 |
| M39 | 58.80 | 60.0 | 37.40 | 39.0 |
| M42 | 63.80 | 65.0 | 40.40 | 42.0 |
| M45 | 68.10 | 70.0 | 43.40 | 45.0 |
| M48 | 73.10 | 75.0 | 46.40 | 48.0 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
