Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Medium Split Lock Washer. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

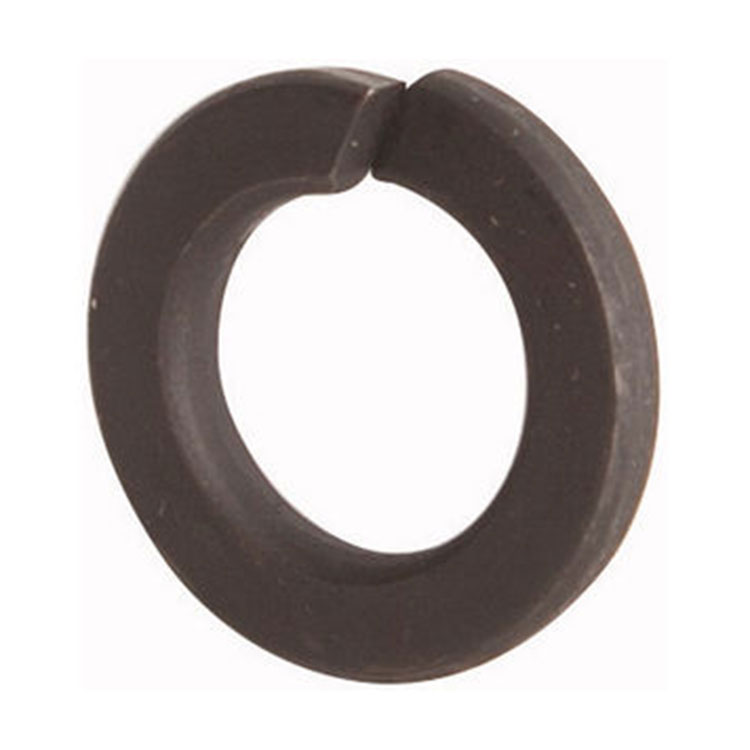

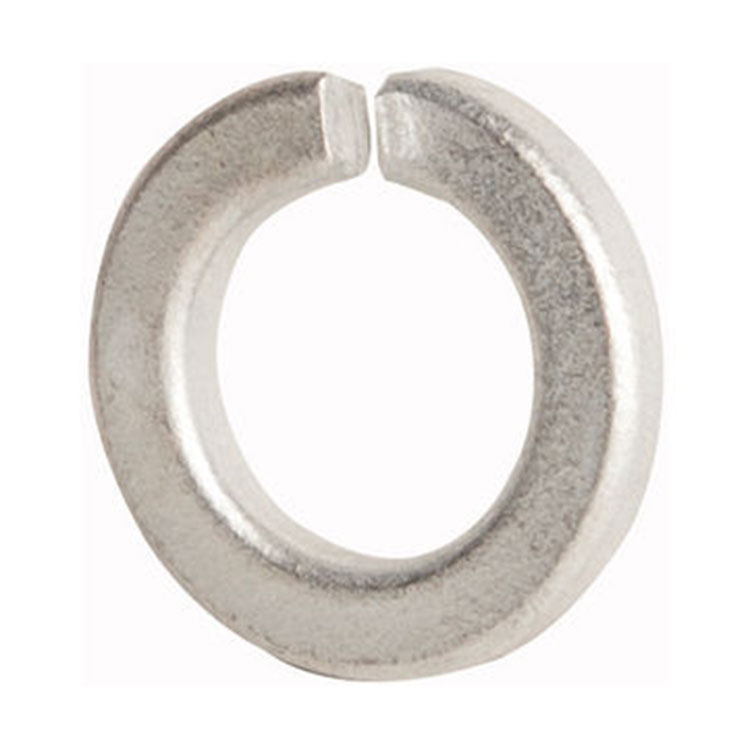

Medium Split Lock Washer also known as spring lock washers, these split lock washers provide a positive locking action. Spring like take-up compensates for loosening caused by slight material wear.
| Dimensions: | ASME B18.21.1 |
| Material and Mechanical: | Carbon Steel Meeting AISI 1055-1065 |
| Mn is allowed from 0.5-1.2% | |
| Finish: | Mechanical Zinc per ASTM B695, Class 5, Type 1 |
| In compliance with current RoHS European Union Directive | |
| Head Marking: | No |
| Grade: | HRC 38 to 46 |
| Type: | Split Lock Washer |
|
Nominal Washer Size |
A | B | T | W | BW | |
| Inside Diameter |
Outside Diameter |
Mean Section Thickness (T1+To)/2 |
Section Width |
Bearing Width |
||
| Max. | Min. | Max. | Min. | Min. | Min. | |
| #2 | .094 | .088 | .172 | .020 | .035 | .024 |
| #3 | .107 | .101 | .195 | .025 | .040 | .028 |
| #4 | .120 | .114 | .209 | .025 | .040 | .028 |
| #5 | .133 | .127 | .236 | .031 | .047 | .033 |
| #6 | .148 | .141 | .250 | .031 | .047 | .033 |
| #8 | .174 | .167 | .293 | .040 | .055 | .038 |
| #10 | .200 | .193 | .334 | .047 | .062 | .043 |
| #12 | .227 | .220 | .377 | .056 | .070 | .049 |
| 1/4 | .260 | .252 | .487 | .062 | .109 | .076 |
| 5/16 | .322 | .314 | .583 | .078 | .125 | .087 |
| 3/8 | .385 | .377 | .680 | .094 | .141 | .099 |
| 7/16 | .450 | .440 | .776 | .109 | .156 | .109 |
| 1/2 | .512 | .502 | .869 | .125 | .171 | .120 |
| 9/16 | .574 | .564 | .965 | .141 | .188 | .132 |
| 5/8 | .641 | .628 | 1.073 | .156 | .203 | .142 |
| 3/4 | .766 | .753 | 1.265 | .188 | .234 | .164 |
| 7/8 | .894 | .878 | 1.459 | .219 | .266 | .186 |
| 1 | 1.024 | 1.003 | 1.656 | .250 | .297 | .208 |
| 1-1/8 | 1.153 | 1.129 | 1.847 | .281 | .328 | .230 |
| 1-1/4 | 1.280 | 1.254 | 2.036 | .312 | .359 | .251 |
| 1-3/8 | 1.408 | 1.379 | 2.219 | .344 | .391 | .274 |
| 1-1/2 | 1.534 | 1.504 | 2.419 | .375 | .422 | .295 |
| 1-5/8 | 1.663 | 1.633 | 2.553 | .389 | .424 | .297 |
| 1-3/4 | 1.789 | 1.758 | 2.679 | .389 | .424 | .297 |
| 1-7/8 | 1.914 | 1.883 | 2.811 | .422 | .427 | .299 |
| 2 | 2.039 | 2.008 | 2.936 | .422 | .427 | .299 |
| 2-1/4 | 2.293 | 2.262 | 3.221 | .440 | .442 | .309 |
| 2-1/2 | 2.543 | 2.512 | 3.471 | .440 | .442 | .309 |
| 2-3/4 | 2.793 | 2.762 | 3.824 | .458 | .491 | .344 |
| 3 | 3.043 | 3.012 | 4.074 | .458 | .491 | .344 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
