Jiaxing Join Fasteners Co.,Ltd. supply a wide range of DIN127B Spring Lock Washer. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

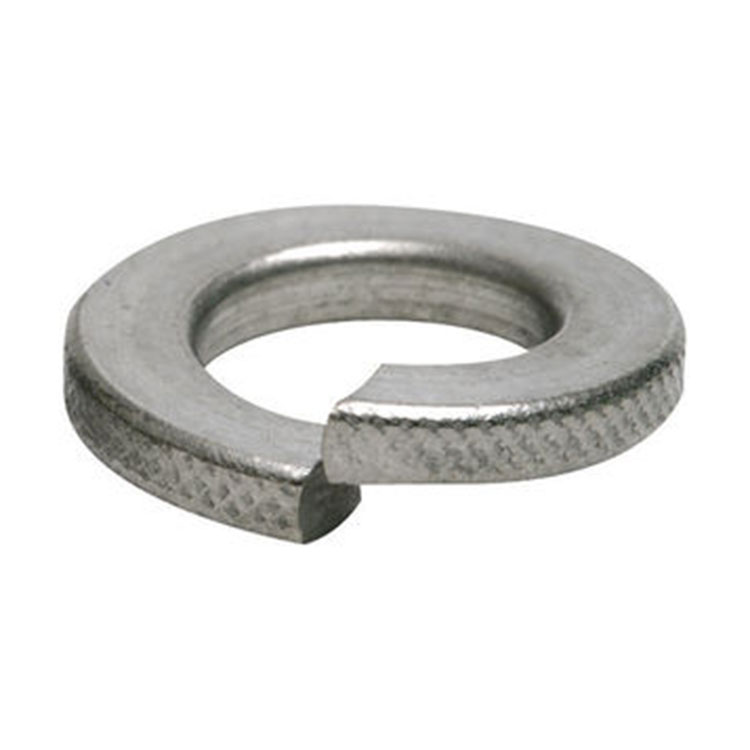

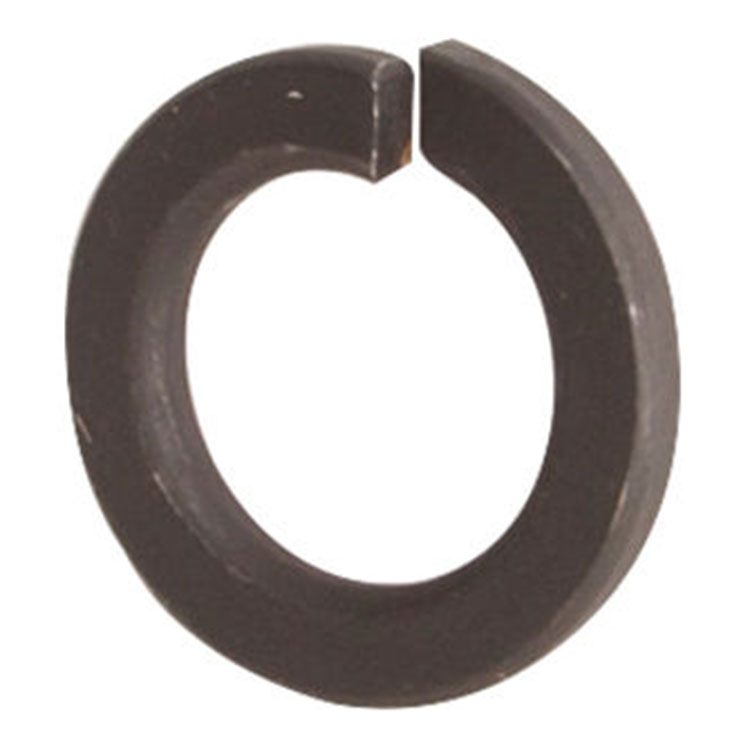

DIN127B Spring Lock Washer provides positive locking action. Spring like take-up compensates for loosening caused by slight material wear. Plain finish, or bare metal, may or may not have a coating of light oil to resist corrosion.
| Dimensions: | DIN 127, Type B |
| Material and Mechanical: | Spring Steel 70# or 65Mn |
| Finish: | Plain with Light Protective Oil or Zinc clear |
| Head Marking: | No |
| Grade: | Type B |
| Type: | Split Lock Washer |
|
Nominal Size |
d1 | d2 | S | ||
| Inside Diameter |
Outside Diameter |
Thickness | |||
| Min. | Max. | Max. | Min. | Max. | |
| M2 | 2.1 | 2.4 | 4.4 | 0.40 | 0.60 |
| M2.2 | 2.3 | 2.6 | 4.8 | 0.50 | 0.70 |
| M2.5 | 2.6 | 2.9 | 5.1 | 0.50 | 0.70 |
| M3 | 3.1 | 3.4 | 6.2 | 0.70 | 0.90 |
| M3.5 | 3.6 | 3.9 | 6.7 | 0.70 | 0.90 |
| M4 | 4.1 | 4.4 | 7.6 | 0.80 | 1.00 |
| M5 | 5.1 | 5.4 | 9.2 | 1.10 | 1.30 |
| M6 | 6.1 | 6.5 | 11.8 | 1.50 | 1.70 |
| M7 | 7.1 | 7.5 | 12.8 | 1.50 | 1.70 |
| M8 | 8.1 | 8.5 | 14.8 | 1.90 | 2.10 |
| M10 | 10.2 | 10.7 | 18.1 | 2.05 | 2.35 |
| M12 | 12.2 | 12.7 | 21.1 | 2.35 | 2.65 |
| M14 | 14.2 | 14.7 | 24.1 | 2.85 | 3.15 |
| M16 | 16.2 | 17.0 | 27.4 | 3.30 | 3.70 |
| M18 | 18.2 | 19.0 | 29.4 | 3.30 | 3.70 |
| M20 | 20.2 | 21.2 | 33.6 | 3.80 | 4.20 |
| M22 | 22.5 | 23.5 | 35.9 | 3.80 | 4.20 |
| M24 | 24.5 | 25.5 | 40.0 | 4.80 | 5.20 |
| M27 | 27.5 | 28.5 | 43.0 | 4.80 | 5.20 |
| M30 | 30.5 | 31.7 | 48.2 | 5.80 | 6.20 |
| M36 | 36.5 | 37.7 | 58.2 | 5.80 | 6.20 |
| M39 | 39.5 | 40.7 | 61.2 | 5.80 | 6.20 |
| M42 | 42.5 | 43.7 | 68.2 | 6.75 | 7.25 |
| M45 | 45.5 | 46.7 | 71.2 | 6.75 | 7.25 |
| M48 | 49.0 | 50.5 | 75.0 | 6.75 | 7.25 |
| M52 | 53.0 | 54.5 | 83.0 | 7.75 | 8.25 |
| M56 | 57.0 | 58.5 | 87.0 | 7.75 | 8.25 |
| M60 | 61.0 | 62.5 | 91.0 | 7.75 | 8.25 |
| M64 | 65.0 | 66.5 | 95.0 | 7.75 | 8.25 |
| M68 | 69.0 | 70.5 | 99.0 | 7.75 | 8.25 |
| M72 | 73.0 | 74.5 | 103.0 | 7.75 | 8.25 |
| M80 | 81.0 | 82.5 | 111.0 | 7.75 | 8.25 |
| M90 | 91.0 | 92.5 | 121.0 | 7.75 | 8.25 |
| M100 | 101.0 | 102.5 | 131.0 | 7.75 | 8.25 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
