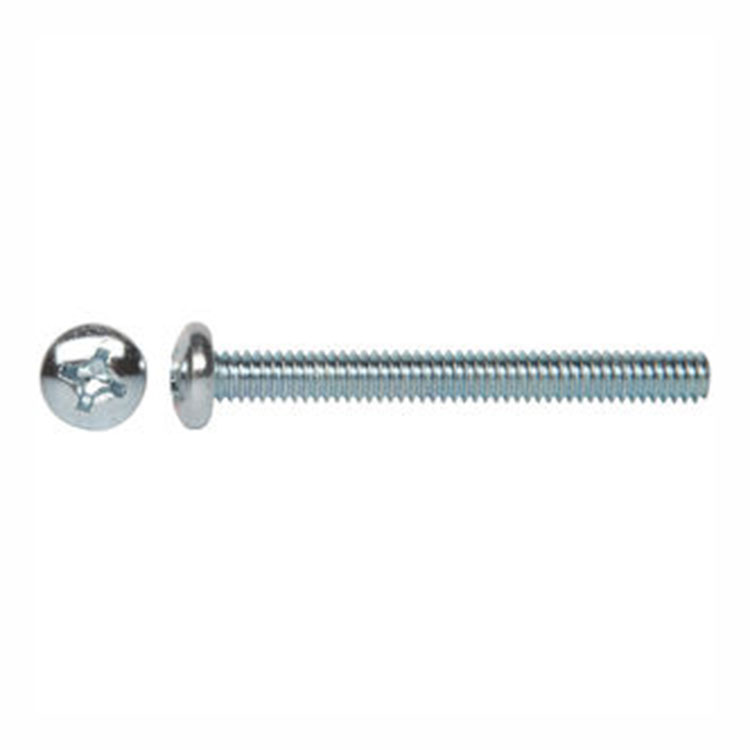

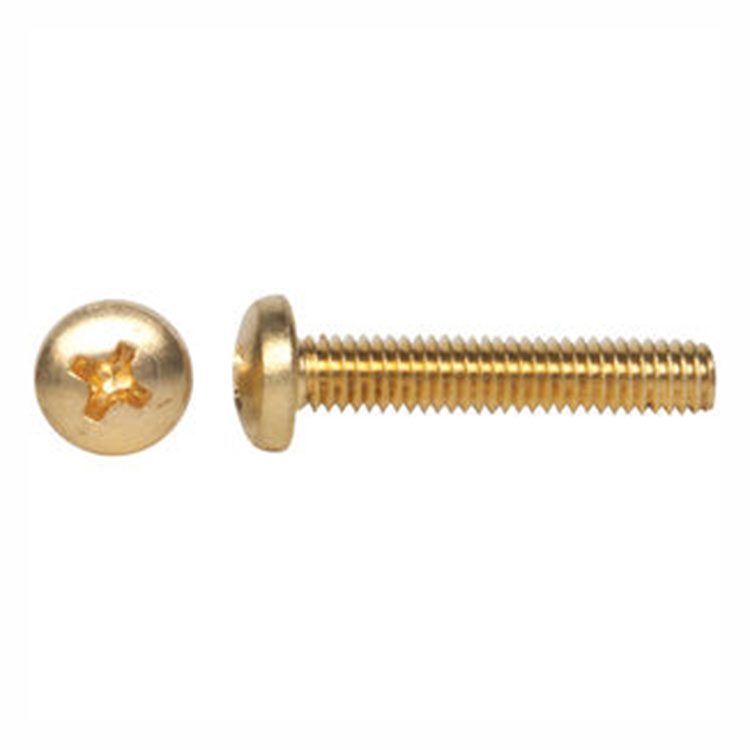

Pan Head offers low clearance from the low profile, large diameter head. Slightly rounded top surface and short vertical sides. Length is measured from under the head. Can be used in most situatinos when general bearing strength is needed.Machine threads are used in a pre-tapped hole with a nut. Zinc is a popular and economical plating and is a good choice for interior applications when working with acidic woods like red/white oak, or when the screw will be countersunk and plugged. In addition, the screw material has a variety of options, including iron (such as low carbon steel, medium carbon steel, high carbon steel) and stainless steel (such as stainless steel 201, stainless steel 304, stainless steel 316, etc.) to meet the needs of different environments and applications .
| Dimensions: | ASME B18.6.3 |
| Material and Mechanical: | Carbon Steel per ASME B18.6.3 |
| Head: | Pan |
| Drive: | Phillips |
| Dia/Thread Size: | ASME B1.1, UNC & UNF, Class 2A |
| Finish: | Fe/Zn 3AN per ASTM F1941/F1941M |
| Head Marking: | No |
| Grade: | SAE J429 GRADE 2 |
| Type: | Machine Screw |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
|
Nominal Size or Basic Screw Diameter |
A | H | R | M | T | ||||
| Head Diameter | Head Height |
Head Radius |
Recess Diameter |
Recess Gaging Depth |
|||||
| Max. | Min. | Max. | Min. | Min. | Ref. | Max. | Min. | ||
| #0 | 0.0600 | 0.116 | 0.104 | 0.044 | 0.036 | 0.005 | 0.060 | 0.032 | 0.014 |
| #1 | 0.0730 | 0.142 | 0.130 | 0.053 | 0.044 | 0.005 | 0.067 | 0.040 | 0.022 |
| #2 | 0.0860 | 0.167 | 0.155 | 0.062 | 0.053 | 0.010 | 0.097 | 0.052 | 0.034 |
| #3 | 0.0990 | 0.193 | 0.180 | 0.071 | 0.062 | 0.010 | 0.105 | 0.061 | 0.043 |
| #4 | 0.1120 | 0.219 | 0.205 | 0.080 | 0.070 | 0.010 | 0.115 | 0.071 | 0.053 |
| #5 | 0.1250 | 0.245 | 0.231 | 0.089 | 0.079 | 0.015 | 0.152 | 0.072 | 0.046 |
| #6 | 0.1380 | 0.270 | 0.256 | 0.097 | 0.087 | 0.015 | 0.159 | 0.080 | 0.055 |
| #8 | 0.1640 | 0.322 | 0.306 | 0.115 | 0.105 | 0.015 | 0.175 | 0.097 | 0.071 |
| #10 | 0.1900 | 0.373 | 0.357 | 0.133 | 0.122 | 0.020 | 0.192 | 0.113 | 0.089 |
| #12 | 0.2160 | 0.425 | 0.407 | 0.151 | 0.139 | 0.025 | 0.252 | 0.124 | 0.098 |
| 1/4 | 0.2500 | 0.492 | 0.473 | 0.175 | 0.162 | 0.035 | 0.274 | 0.144 | 0.118 |
| 5/16 | 0.3125 | 0.615 | 0.594 | 0.218 | 0.203 | 0.040 | 0.343 | 0.173 | 0.149 |
| 3/8 | 0.3750 | 0.740 | 0.716 | 0.261 | 0.244 | 0.040 | 0.382 | 0.213 | 0.190 |
Specification Requirements: Unless otherwise specified, all applicable requirements shall be in accordance with ASME B18.6.3
