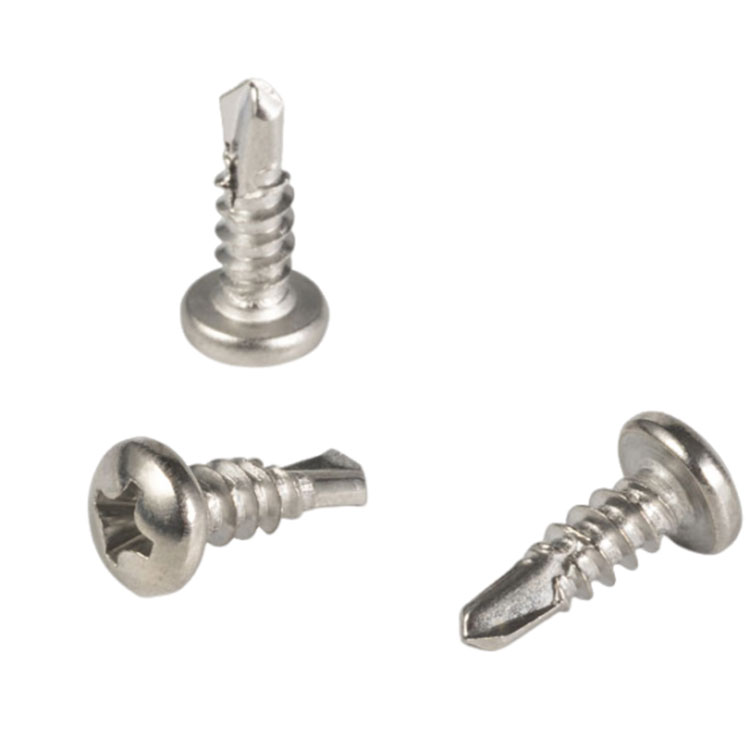

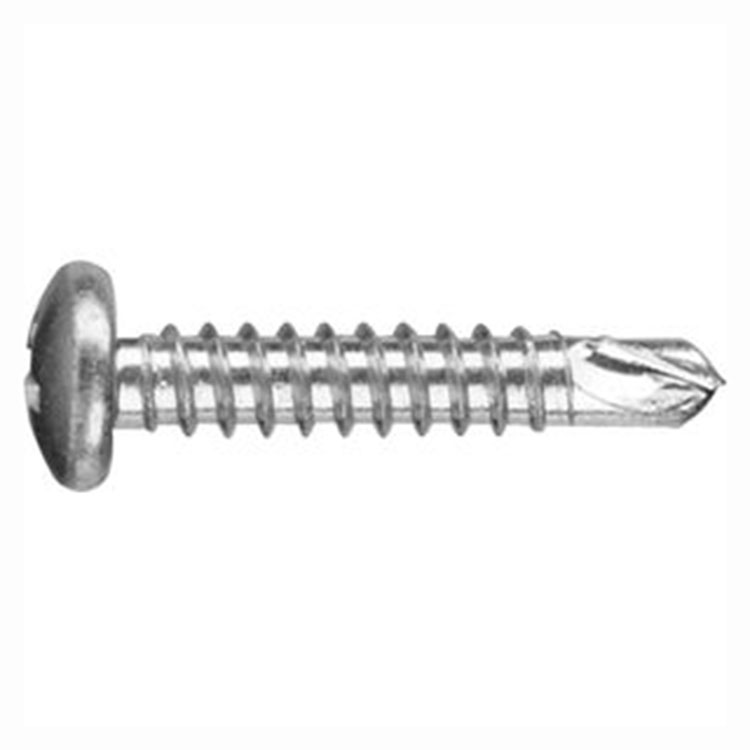

Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Stainless Steel Phillips Pan Head Self Drilling Screws. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
Stainless steel drilling screws are a combination of drilling, tapping, fixing and locking screws, which are widely used in a variety of occasions requiring strong connections. it is favored by the market because of its superior performance, such as high strength, beautiful appearance and low price, especially in the fields of railway, infrastructure, doors and Windows curtain walls, photovoltaic, steel structure and high-rise buildings have a wide range of applications.
| Dimensions: | ASME B18.6.3, Fully Threaded |
| SAE J78 except length tolerance | |
| Material and Mechanical: | Stainless Steel |
| Head: | Pan |
| Drive: | Cross recessed (Type I) |
| Dia/Thread Size: | See below technical sheet |
| Finish: | Plain ASTM A380/A380M |
| Point: | Sizes #4 to #8: #2 |
| Sizes #10 and above: #3 | |
| Grade: | 18-8 |
| Type: | Stainless Steel Self Drilling Screws |
|
Nominal Size |
A | H | R | M | P |
Driver Size |
|||
|
Head Diameter |
Head Height |
Head Radius |
Recess Diameter |
Recess Penetration Gaging Depth |
|||||
| Max. | Min. | Max. | Min. | Min. | Ref. | Max. | Min. | ||
| #6 | .270 | .256 | .097 | .087 | .015 | .159 | .080 | .055 | 2 |
| #8 | .322 | .306 | .115 | .105 | .015 | .175 | .097 | .071 | 2 |
| #10 | .373 | .357 | .133 | .122 | .020 | .192 | .113 | .089 | 2 |
| #12 | .425 | .407 | .151 | .139 | .025 | .252 | .124 | .098 | 3 |
| 1/4 | .492 | .473 | .175 | .162 | .035 | .274 | 144 | .118 | 3 |
| Length Tolerance | |
| Nominal Screw Length | Tolerance |
| Up to 1",inclusive | ±0.03 |
| Over 1" | ±0.05 |
|
Nominal Size |
Type BSD | |||||||
|
Threads per Inch |
D | Minor Diameter | Z | Point Diameter | ||||
| Major Diameter | Protrusion | |||||||
| Max. | Min. | Max. | Min. | Ref. | Max. | Min. | ||
| #6 | 20 | .139 | .135 | .104 | .099 | .190 | .116 | .110 |
| #8 | 18 | .166 | .161 | .122 | .116 | .211 | .136 | .130 |
| #10 | 16 | .189 | .183 | .141 | .135 | .300 | .156 | .150 |
| #12 | 14 | .215 | .209 | .164 | .157 | .353 | .183 | .177 |
| 1/4 | 14 | .246 | .240 | .192 | .185 | .393 | .222 | .217 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
