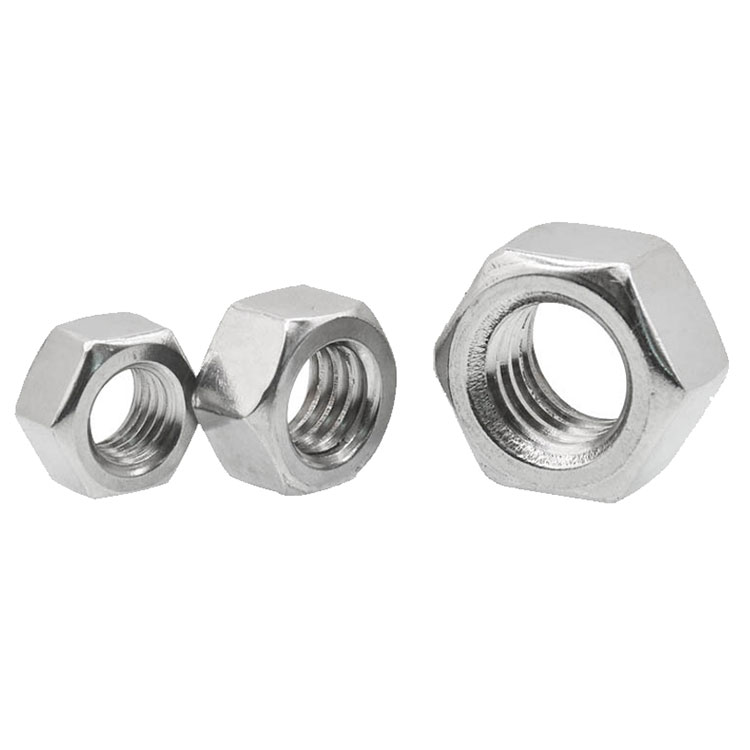

Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Stainless Steel DIN934 Finish Hex Nut. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
The most versatile and widely used nut, it should be used with any low carbon bolt or screw that is heat-treated; 6H thread requirement. A2-70 or A4-70 Stainless Steel Material.
| Dimensions: | DIN 934 |
| Material and Mechanical: | DIN 267 Part 11; A2-70 Stainless Steel |
| DIN 267 Part 11; A4-70 Stainless Steel | |
| Threads: | 6H per ISO 724; ISO 965-1 |
| Finish: | ASTM A380/A380M |

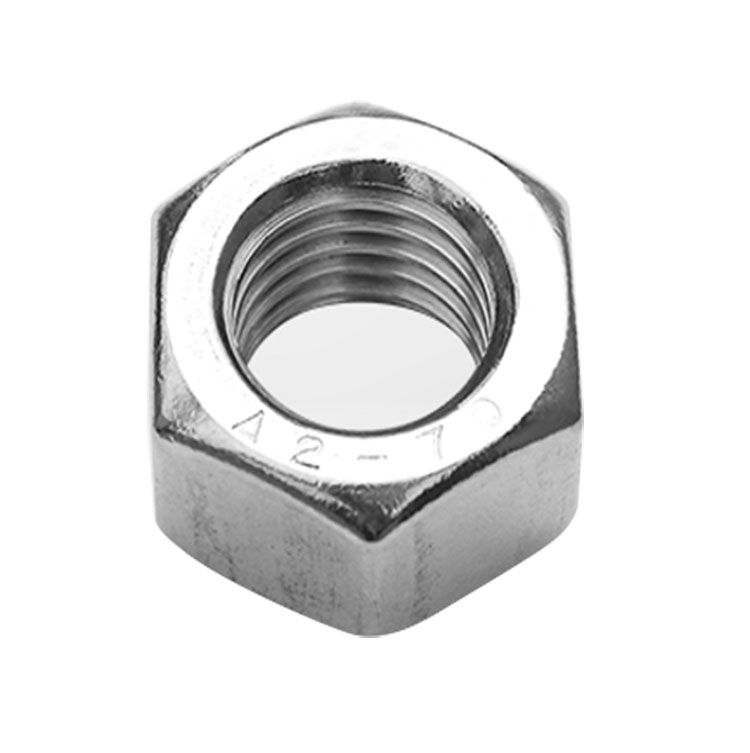

| Head Marking: | Grade A2-70: Manufacturer’s ID and A2-70 for sizes M5 and larger |
| Grade A4-70: Manufacturer’s ID and A4-70 for sizes M5 and larger | |
| Grade: | A2-70 and A4-70 |
| Type: | SS Hex Nut |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
Technical Reference:
|
Nominal Size |
F | H | ||
| Width Across Flats | Thickness | |||
| Max. | Min. | Max. | Min. | |
| M1 | 2.5 | 2.40 | 0.8 | 0.55 |
| M1.2 | 3.0 | 2.90 | 1.0 | 0.75 |
| M1.4 | 3.0 | 2.90 | 1.2 | 0.95 |
| M1.6 | 3.2 | 3.02 | 1.3 | 1.05 |
| M2 | 4.0 | 3.82 | 1.6 | 1.35 |
| M2.5 | 5.0 | 4.82 | 2.0 | 1.75 |
| M3 | 5.5 | 5.32 | 2.4 | 2.15 |
| M3.5 | 6.0 | 5.82 | 2.8 | 2.55 |
| M4 | 7.0 | 6.78 | 3.2 | 2.90 |
| M5 | 8.0 | 7.78 | 4.0 | 3.70 |
| M6 | 10.0 | 9.78 | 5.0 | 4.70 |
| M7 | 11.0 | 10.73 | 5.5 | 5.20 |
| M8 | 13.0 | 12.73 | 6.5 | 6.14 |
| M10 | 17.0 | 16.73 | 8.0 | 7.64 |
| M12 | 19.0 | 18.67 | 10.0 | 9.64 |
| M14 | 22.0 | 21.67 | 11.0 | 10.30 |
| M16 | 24.0 | 23.67 | 13.0 | 12.30 |
| M18 | 27.0 | 26.16 | 15.0 | 14.30 |
| M20 | 30.0 | 29.16 | 16.0 | 14.90 |
| M22 | 32.0 | 31.00 | 18.0 | 16.90 |
| M24 | 36.0 | 35.00 | 19.0 | 17.70 |
| M27 | 41.0 | 40.00 | 22.0 | 20.70 |
| M30 | 46.0 | 45.00 | 24.0 | 22.70 |
| M33 | 50.0 | 49.00 | 26.0 | 24.70 |
| M36 | 55.0 | 53.80 | 29.0 | 27.40 |
| M39 | 60.0 | 58.80 | 31.0 | 29.40 |
| M42 | 65.0 | 63.10 | 34.0 | 32.40 |
| M45 | 70.0 | 68.10 | 36.0 | 34.40 |
| M48 | 75.0 | 73.10 | 38.0 | 36.40 |
| M52 | 80.0 | 78.10 | 42.0 | 40.40 |
| M56 | 85.0 | 82.80 | 45.0 | 43.40 |
| M60 | 90.0 | 87.80 | 48.0 | 46.40 |
| M64 | 95.0 | 92.80 | 51.0 | 49.10 |
| M68 | 100.0 | 97.80 | 54.0 | 52.10 |
| M72 | 105.0 | 102.80 | 58.0 | 56.10 |
| M76 | 110.0 | 107.80 | 61.0 | 59.10 |
| M80 | 115.0 | 112.80 | 64.0 | 62.10 |
| M85 | 120.0 | 117.80 | 68.0 | 66.10 |
| M90 | 130.0 | 127.50 | 72.0 | 70.10 |
| M100 | 145.0 | 142.50 | 80.0 | 78.10 |
| M110 | 155.0 | 152.50 | 88.0 | 85.80 |
| M125 | 180.0 | 177.50 | 100.0 | 97.80 |
| M140 | 200.0 | 195.40 | 112.0 | 109.80 |
| M160 | 230.0 | 225.40 | 128.0 | 125.50 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
