Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Stainless Steel Jam Nut. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

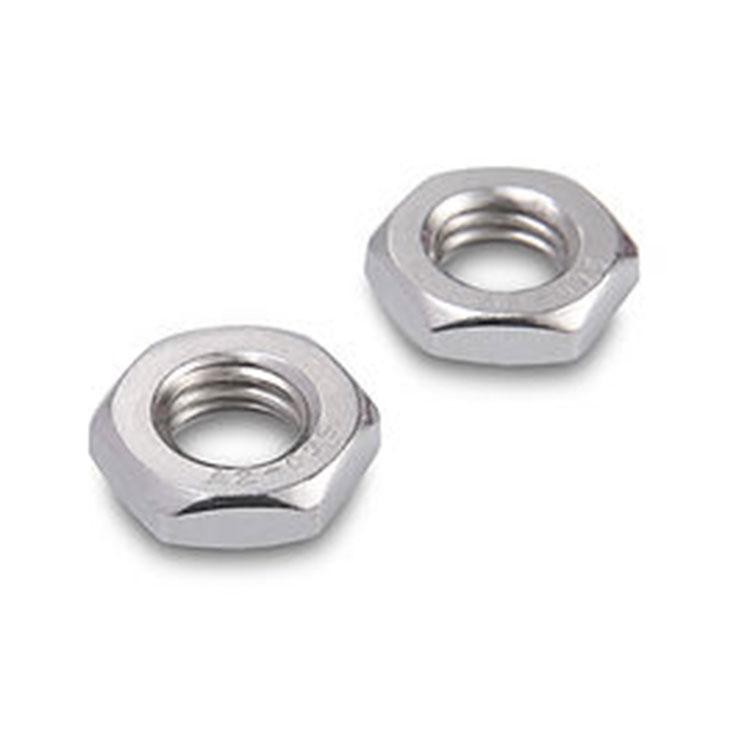

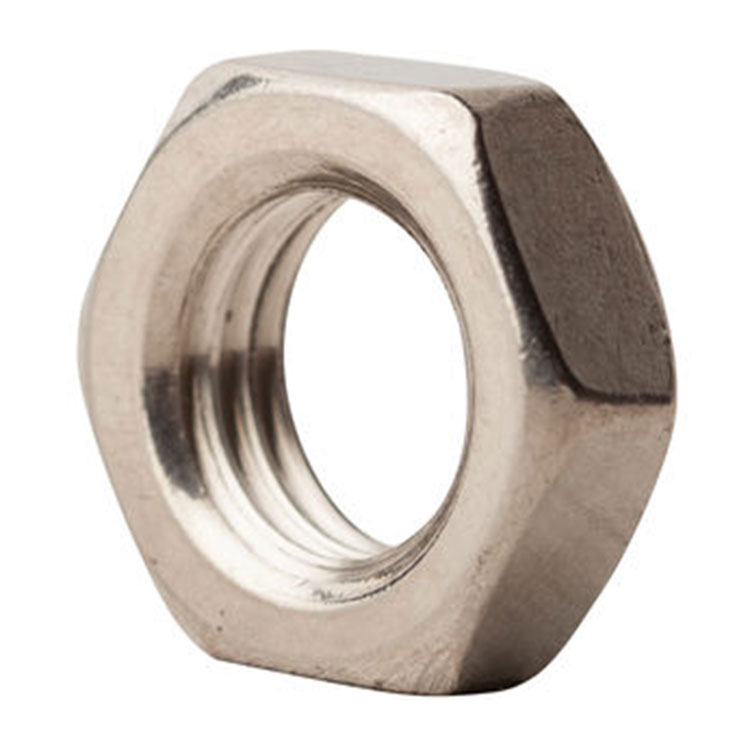

Jam Nuts are often used to lock or "jam" something in place without clamping against another object; Jam Nuts are typically low profile compared to a standard nut. 316 Stainless Steel material. HRB 80 min. to HRC 36 max hardness. ANSI B1.1 UNC and UNF Class 2B thread requirements. Stainless Steel material.
| Dimensions: | ASME B18.2.2 |
| Material and Mechanical: | 316 or 316L Stainless Steel |
| Proof Load: ¼” to 5/8” 50,000 PSI min, ¾” to 1 ½” 42,500 PSI min | |
| Hardness: HRB 80 min. to HRC 36 max. | |
| Threads: | ASME B1.1, UNC, UNF & UNS, Class 2B |
| Finish: | ASTM A380/A380M |
| Head Marking: | Manufacturer’s ID and Alloy Grade Marking |
| Grade: | 316 |
| Type: | SS Jam Nut |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
|
Nominal Size |
F | H | ||
| Width Across Flats | Thickness | |||
| Max. | Min. | Max. | Min. | |
| 1/4 | .438 | .428 | .163 | .150 |
| 5/16 | .500 | .489 | .195 | 180 |
| 3/8 | .563 | .551 | .227 | .210 |
| 7/16 | .688 | .675 | .260 | .240 |
| 1/2 | .750 | .736 | .323 | .302 |
| 9/16 | .875 | .861 | .324 | .301 |
| 5/8 | .938 | .922 | .387 | .363 |
| 3/4 | 1.125 | 1.088 | .446 | .398 |
| 7/8 | 1.312 | 1.269 | .510 | .458 |
| 1 | 1.500 | 1.450 | .575 | .519 |
| 1 1/8 | 1.688 | 1.631 | .639 | .579 |
| 1 1/4 | 1.875 | 1.812 | .751 | .687 |
| 1 3/8 | 2.062 | 1.994 | .815 | .747 |
| 1 1/2 | 2.250 | 2.175 | .880 | .808 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
Dial number +86-573-83772218 or email to bob@jjbfasteners.com, your request will be promptly replied.
Address
Zhifu Centre,Bldg. No.15-1304,1305,Xiuzhou, Jiaxing, Zhejiang, China
Tel
We stand behind our products. All products are manufactured to right specification and high quality standard. Any items found defective or in shortage , an immediate investigation will be conducted and corrective action report will be issued. Claims and returns are given a nice care here.
You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. We have over 18 years experience in exporting various kinds of carbon steel, stainless steel, Bi-Metal fasteners.
Dial number 0086 573 83772218 or email to sales@jjbfasteners.com, your request will be promptly replied.
We rigidly carry out quality control to each step of production:
