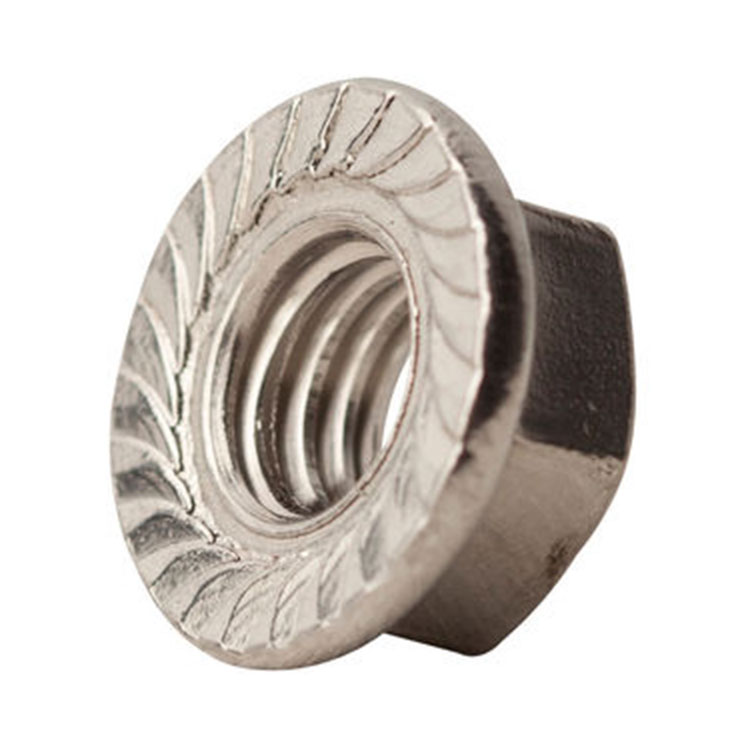

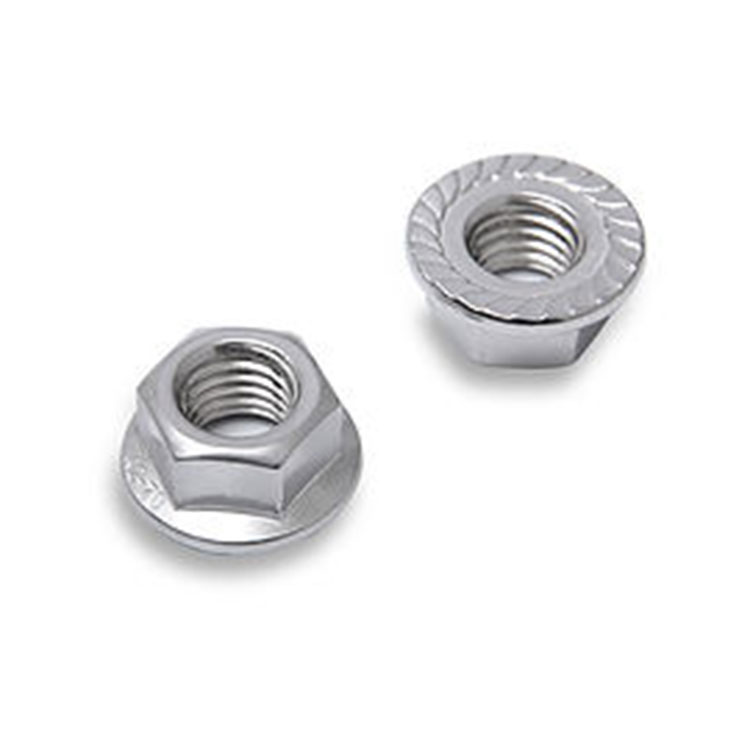

Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Stainless Steel DIN6923 Serrated Flange Nut. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
Stainless steel hexagon flange nut is mainly used to increase the contact area between the nut and the workpiece surface to ensure tight, often used to increase the contact area or withstand greater pressure occasions. This kind of nut has good sealing and anti-corrosion, can effectively prevent rain, moisture, dust and other harmful substances from being immersed, thus prolonging the service life.
| Dimensions: | DIN 6923 |
| Material and Mechanical: | A2-70 Stainless Steel per DIN 267 Part 11 |
| Threads: | 6H per ISO 724; ISO 965-1 |
| Finish: | ASTM A380/A380M |
| Head Marking: | Manufacturer’s ID and A2-70 |
| Grade: | A2-70 |
| Type: | SS Serrated Flange Nut |
| Diameter | m | S | dk | ||
| Overall Height | Width Across Flats |
Flange Diameter |
|||
| Min. | Max. | Min. | Max. | Max. | |
| M5 | 4.7 | 5 | 7.78 | 8 | 11.8 |
| M6 | 5.7 | 6 | 9.78 | 10 | 14.2 |
| M8 | 7.6 | 8 | 12.73 | 13 | 17.9 |
| M10 | 9.6 | 10 | 14.73 | 15 | 21.8 |
| M12 | 11.6 | 12 | 17.73 | 18 | 26.0 |
| M14 | 13.3 | 14 | 20.67 | 21 | 29.9 |
| M16 | 15.3 | 16 | 23.67 | 24 | 34.5 |
| M20 | 18.9 | 20 | 29.67 | 30 | 42.8 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
Dial number +86-573-83772218 or email to bob@jjbfasteners.com, your request will be promptly replied.
Address
Zhifu Centre,Bldg. No.15-1304,1305,Xiuzhou, Jiaxing, Zhejiang, China
Tel
We stand behind our products. All products are manufactured to right specification and high quality standard. Any items found defective or in shortage , an immediate investigation will be conducted and corrective action report will be issued. Claims and returns are given a nice care here.
You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. We have over 18 years experience in exporting various kinds of carbon steel, stainless steel, Bi-Metal fasteners.
Dial number 0086 573 83772218 or email to sales@jjbfasteners.com, your request will be promptly replied.
We rigidly carry out quality control to each step of production:
