Jiaxing Join Fasteners Co.,Ltd. supply a wide range of Bonded Sealing Washer. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

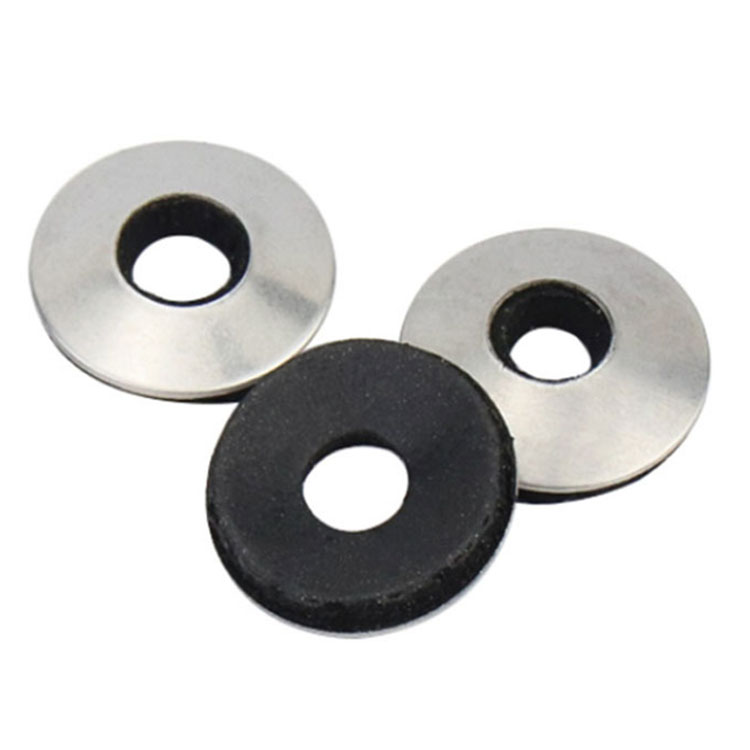

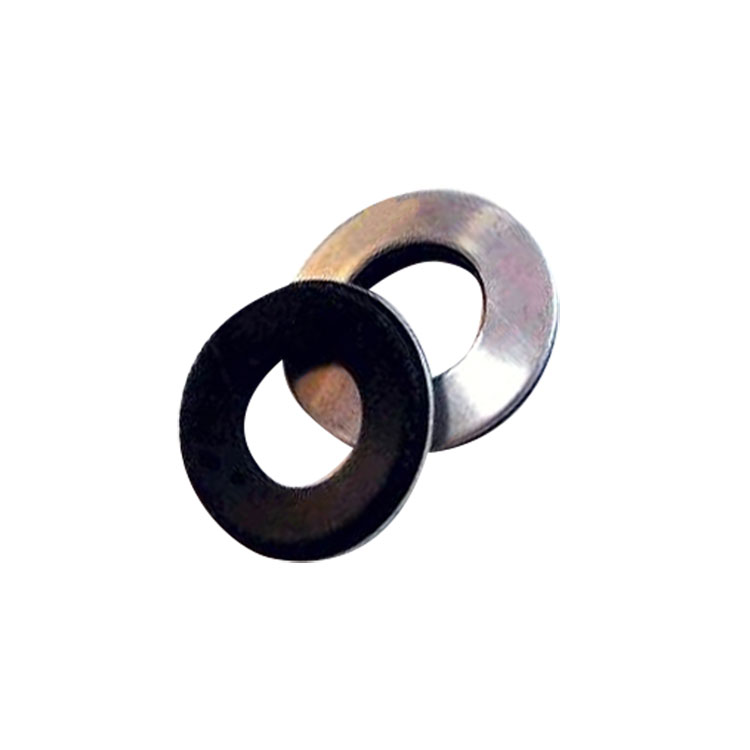

Sealing washers help seal joints, prevent leakage and cushion under the head of the bolt or nut. Rubber is bonded to a washer to form a washer that is strong, yet soft and resilient enough to use with fragile materials. Galzanized plating, made of layers of zinc-iron, protects the bolt from corrosion; typically used in outdoor applications.
| Dimensions: | See table below |
| Material and Mechanical: | Washer: Carbon Steel per ASTM A653/A653M, CS Type B or SS 50 [340] Class 3 |
| Sealing Washer: EPDM | |
| Finish: | Galvanize per ASTM A653/A653M |
| Head Marking: | No |
| Type: | Bonded Sealing Washer |
|
Nominal Size |
ID | OD | EPDM ID |
Washer and Rubber Seal Thickness Combined |
Overall Height | |||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| #6 | .165 | .195 | .355 | .385 | .129 | .153 | .080 | .110 | .079 | .141 |
| #8 | .198 | .218 | .493 | .507 | .129 | .153 | .098 | .122 | .130 | .150 |
| #10 | .198 | .218 | .493 | .507 | .145 | .169 | .098 | .122 | .130 | .150 |
| #12 | .226 | .246 | .547 | .558 | .165 | .189 | .098 | .122 | .126 | .146 |
| #14 | .257 | .277 | .622 | .635 | .208 | .224 | .098 | .122 | .132 | .152 |
| 1/4 | .257 | .277 | .622 | .635 | .208 | .224 | .098 | .122 | .132 | .152 |
| 5/16 | .344 | .364 | .741 | .755 | .259 | .275 | .098 | .122 | .140 | .160 |
| 3/8 | .395 | .415 | .741 | .755 | .334 | .358 | .098 | .122 | .140 | .160 |
| 1/2 | .541 | .561 | .977 | .991 | .488 | .511 | .098 | .122 | .157 | .174 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
