Jiaxing Join Fasteners Co.,Ltd. supply a wide range of External Retaining Ring. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

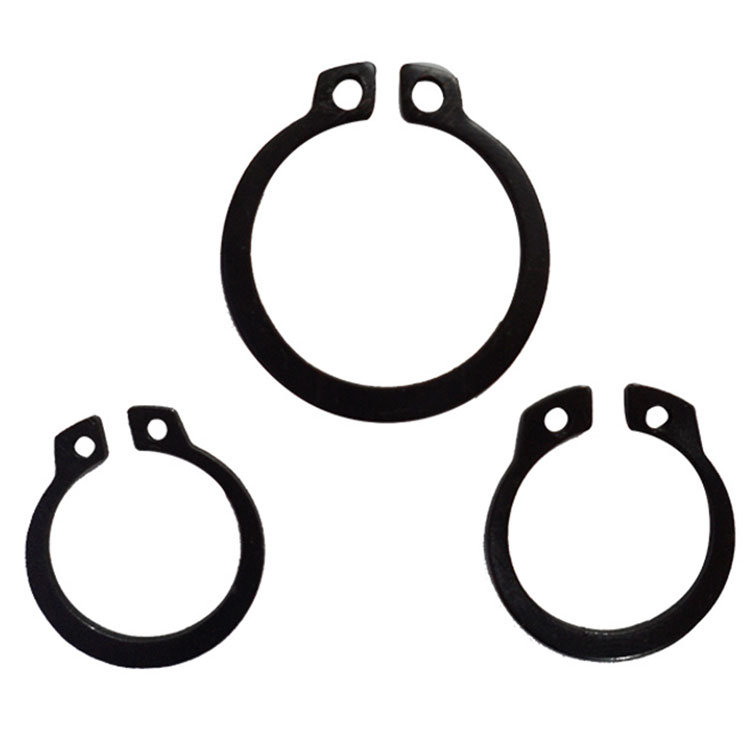

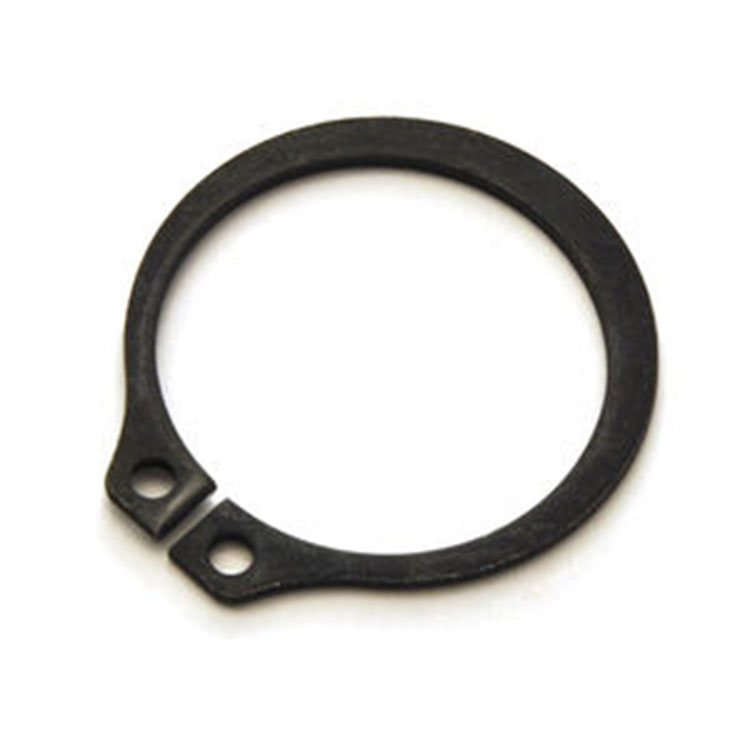

External Rings fit into the groove of a shaft. The portion of the ring that protrudes from the groove holds the assembly in place.
| Dimensions: | per ASME B18.27 |
| Material and Mechanical: | AISI 1060-1090,Hardness as below: |
| Size 1/8’’ – 15/64’’: 84-86 HR15N | |
| Size ¼’’ – 15/32’’: 69.5-73 HR30N | |
| Size ½’’ – 13/16’’: 66-71 HR30N | |
| Size >13/16’’ – 1’’: 47-53 HRC | |
| Size 1-1/16’’ – 3-7/16’’: 47-52 HRC | |
| Size 3-1/2’’-4’’: 44-51 HRC | |
| Finish: | Phosphate coated 600-1100 mg/ft2 |
| Head Marking: | No |
| Type: | External Retaining Ring |
| Diameter | d1 | d2 | h | |||
| Inside Diameter | Outside Diameter | Thickness | ||||
| Min. | Max. | Max. | Min. | Max. | Min. | |
| M2.5 | 2.70 | 2.84 | 8.00 | 7.64 | 0.90 | 0.70 |
| M3 | 3.20 | 3.38 | 9.00 | 8.64 | 0.90 | 0.70 |
| M4 | 4.30 | 4.48 | 12.00 | 11.57 | 1.10 | 0.90 |
| M5 | 5.30 | 5.48 | 15.00 | 14.57 | 1.40 | 1.00 |
| M6 | 6.40 | 6.62 | 18.00 | 17.57 | 1.80 | 1.40 |
| M8 | 8.40 | 8.62 | 24.00 | 23.48 | 2.20 | 1.80 |
| M10 | 10.50 | 10.77 | 30.00 | 29.48 | 2.70 | 2.30 |
| M12 | 13.00 | 13.27 | 37.00 | 36.38 | 3.30 | 2.70 |
| M14 | 15.00 | 15.27 | 44.00 | 43.38 | 3.30 | 2.70 |
| M16 | 17.00 | 17.27 | 50.00 | 49.38 | 3.30 | 2.70 |
| M18 | 20.00 | 20.52 | 56.00 | 54.10 | 4.60 | 3.40 |
| M20 | 22.00 | 22.52 | 60.00 | 58.10 | 4.60 | 3.40 |
| M24 | 26.00 | 26.84 | 72.00 | 70.10 | 6.00 | 4.00 |
| M30 | 33.00 | 34.00 | 92.00 | 89.80 | 7.00 | 5.00 |
| M36 | 39.00 | 40.00 | 110.00 | 107.80 | 9.20 | 6.80 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
Dial number +86-573-83772218 or email to bob@jjbfasteners.com, your request will be promptly replied.
Address
Zhifu Centre,Bldg. No.15-1304,1305,Xiuzhou, Jiaxing, Zhejiang, China
Tel
We stand behind our products. All products are manufactured to right specification and high quality standard. Any items found defective or in shortage , an immediate investigation will be conducted and corrective action report will be issued. Claims and returns are given a nice care here.
You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. We have over 18 years experience in exporting various kinds of carbon steel, stainless steel, Bi-Metal fasteners.
Dial number 0086 573 83772218 or email to sales@jjbfasteners.com, your request will be promptly replied.
We rigidly carry out quality control to each step of production:
