Jiaxing Join Fasteners Co.,Ltd. supply a wide range of DIN436 Square Washer. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

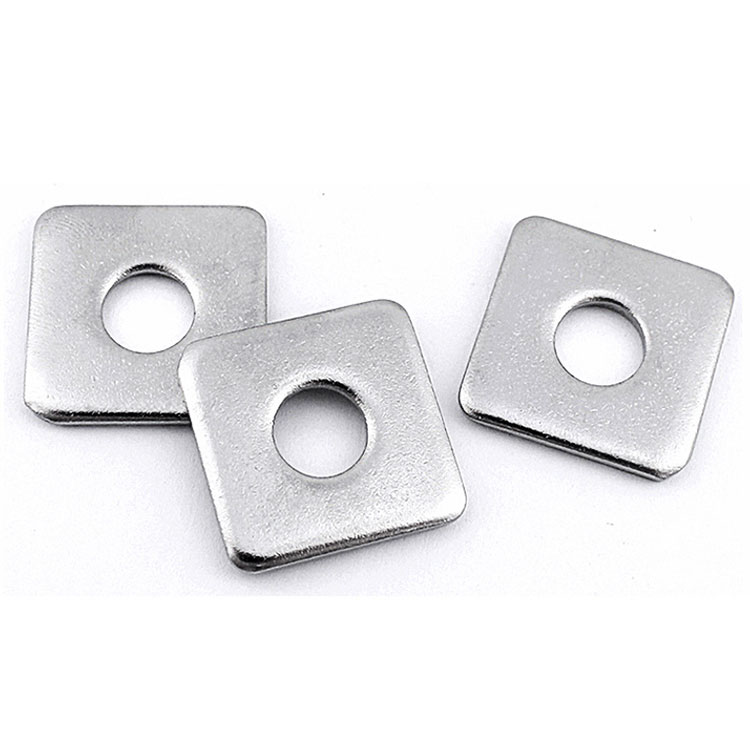

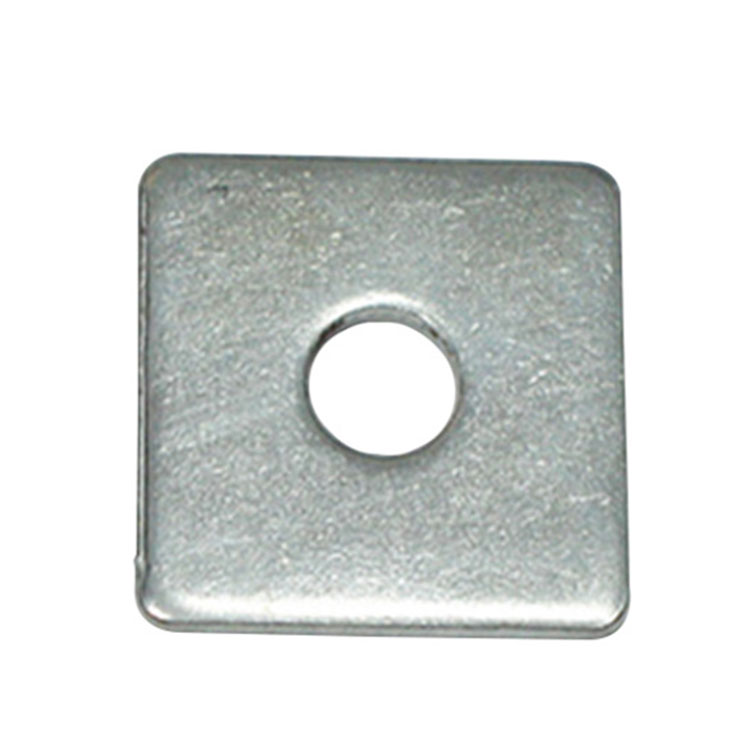

Square Washers are used most often in channel applications. Square washers offer a large surface, but do require more effort to hold into place. Galzanized plating, made of layers of zinc-iron, protects the bolt from corrosion; typically used in outdoor applications.
| Dimensions: | DIN436 |
| Material and Mechanical: | Steel grade being at the manufacturer's discretion |
| Hardness: 100-250 HV 10 | |
| Finish: | Zinc clear per DIN267-10 or Hot-dip galvanized as per DIN EN ISO4042 |
| Head Marking: | No |
| Grade: | C |
| Type: | Square Washer |
|
Nominal size |
For thread size |
d: min.= nominal size max. |
a max.= nominal size min. |
h Nominal size max. min. |
Approximate mass (7,85kg/dm3), per 1000 units, in kg |
||||
| 11 | M10 | 11 | 11,43 | 30 | 28,7 | 3 | 3,6 | 2,4 | 20,0 |
| 13,5 | M12 | 13,5 | 13,93 | 40 | 38,4 | 4 | 4,6 | 3,4 | 45,7 |
| 17,5 | M16 | 17.5 | 18,2 | 50 | 48,4 | 5 | 6 | 4 | 88,7 |
| 22 | M20 | 22 | 22,84 | 60 | 58,1 | 5 | 6 | 4 | 126 |
| 24 | M22 | 24 | 24,84 | 70 | 68,1 | 6 | 7 | 5 | 209 |
| 26 | M24 | 26 | 26,84 | 80 | 78,1 | 6 | 7 | 5 | 275 |
| 30 | M27 | 30 | 30,84 | 90 | 87,8 | 6 | 7 | 5 | 348 |
| 33 | M30 | 33 | 34 | 95 | 92,8 | 6 | 7 | 5 | 385 |
| 36 | M33 | 36 | 37 | 100 | 97,8 | 6 | 7 | 5 | 423 |
| 39 | M36 | 39 | 40 | 110 | 107,8 | 8 | 9,2 | 6,8 | 685 |
| 42 | M39 | 42 | 43 | 125 | 122,5 | 8 | 9,2 | 6,8 | 895 |
| 45 | M42 | 45 | 46 | 135 | 132,5 | 8 | 9.2 | 6,8 | 1050 |
| 48 | M45 | 48 | 49 | 140 | 137,5 | 8 | 9.2 | 6,8 | 1120 |
| 52 | M48 | 52 | 53,2 | 150 | 147,5 | 10 | 11,2 | 8,8 | 1600 |
| 56 | M52 | 56 | 57.2 | 160 | 157,5 | 10 | 11,2 | 8.8 | 1820 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
